FRP / GRP Cable Trays

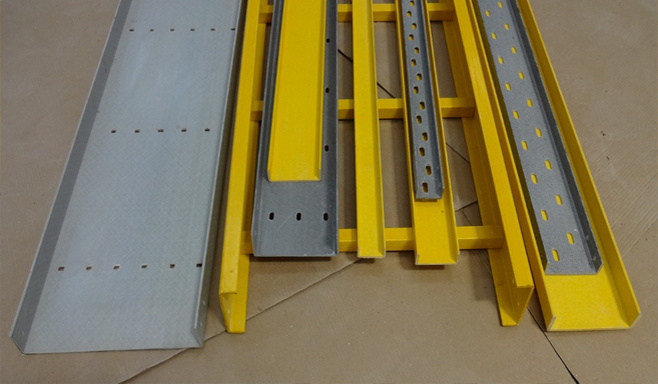

FRP / GRP Cable Tray

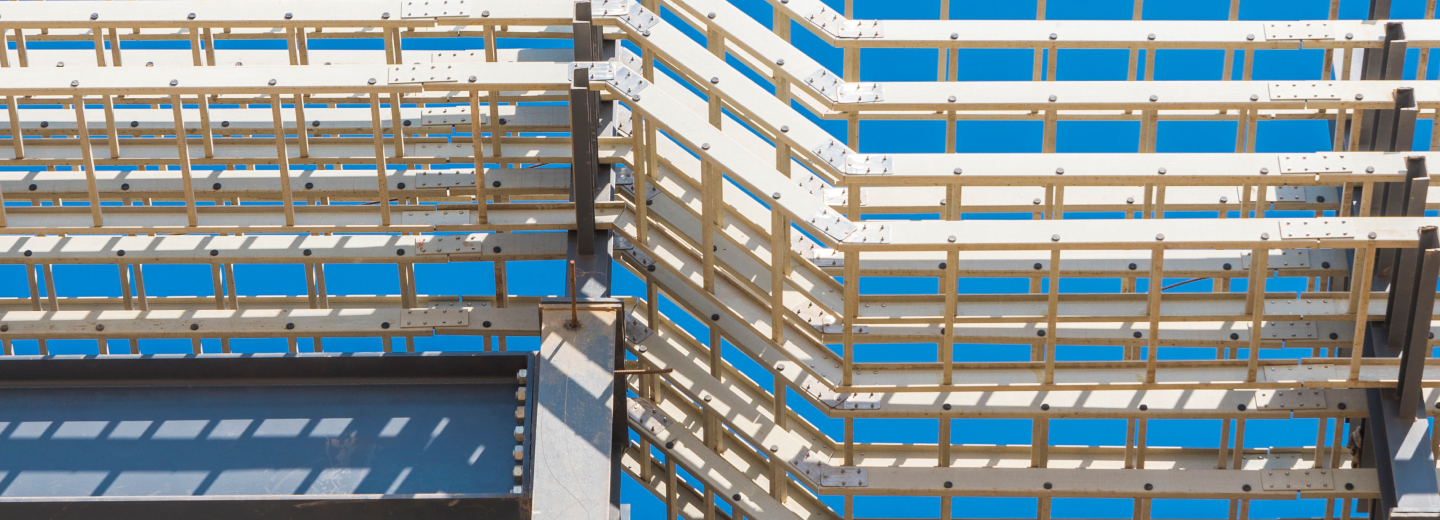

KRIZA provides customers with a range of FRP Cable Tray. The pultrusion process is used to manufacture the cable trays, guaranteeing a high standard of quality, affordable and resistant to all types of chemical assaults.

The world’s most corrosive and structurally demanding settings such as “water treatment facilities, chemical plants, and many mores industries” can use FRP cable trays.

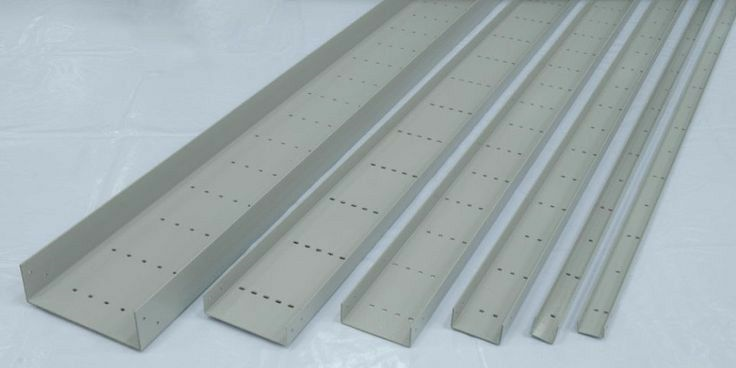

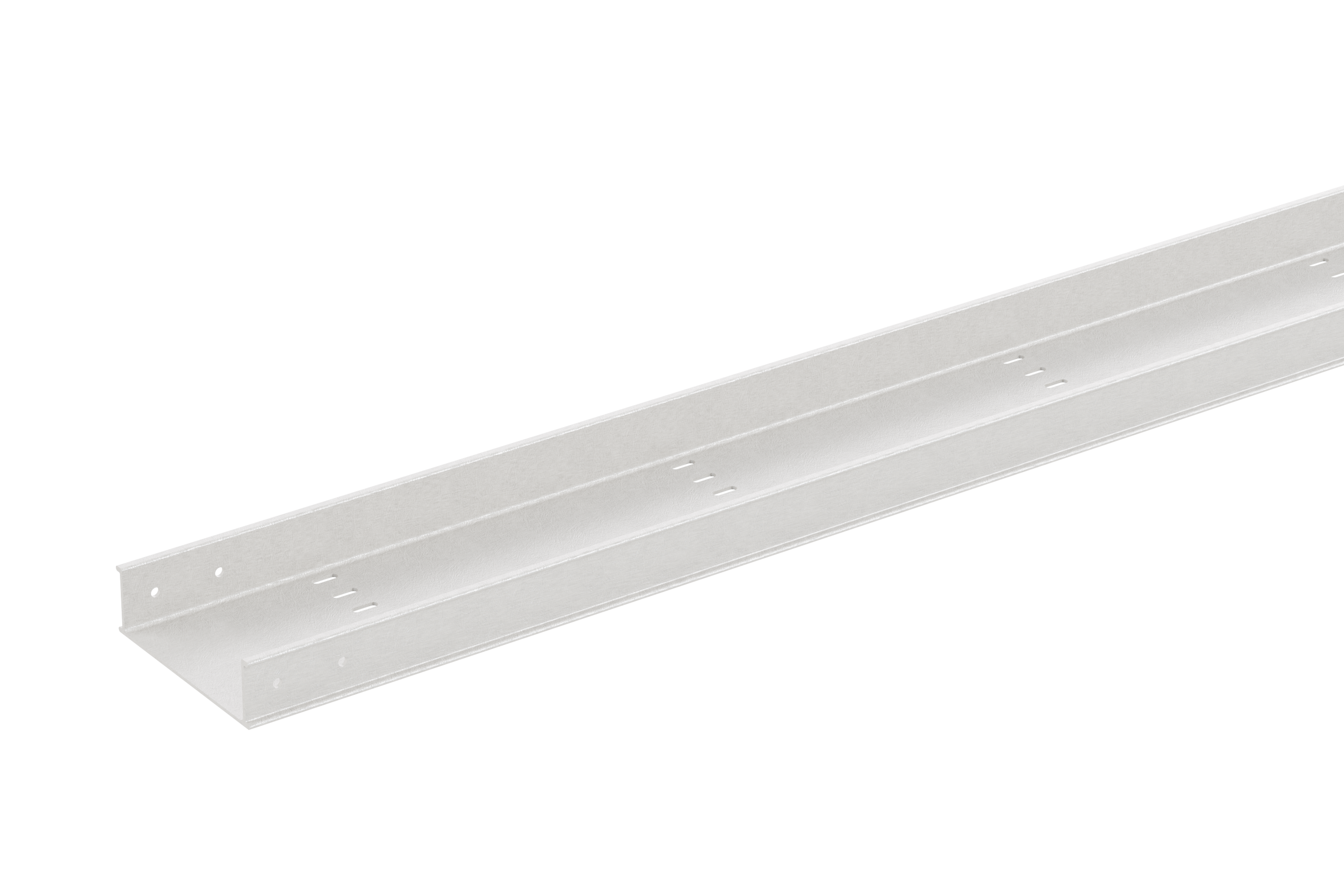

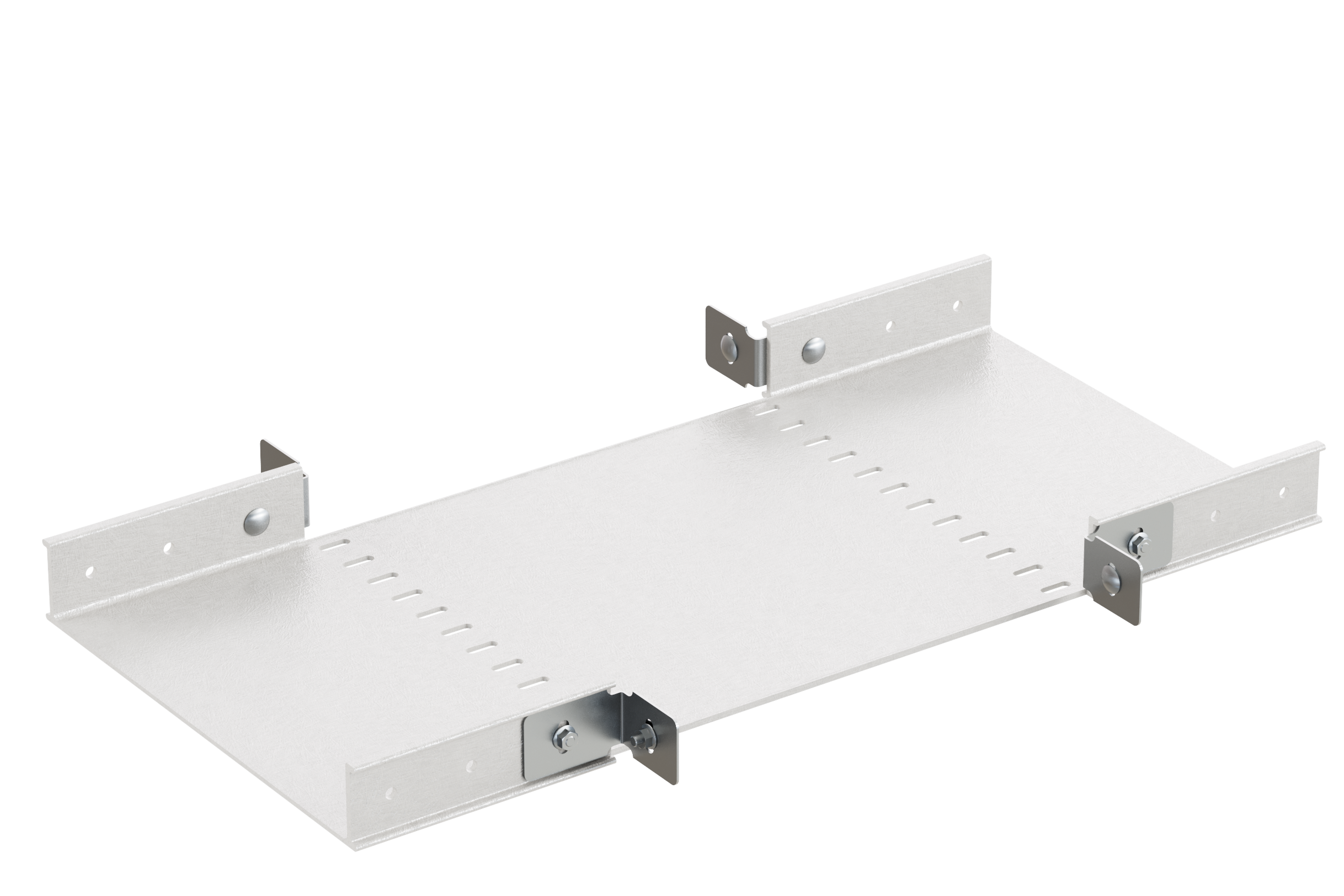

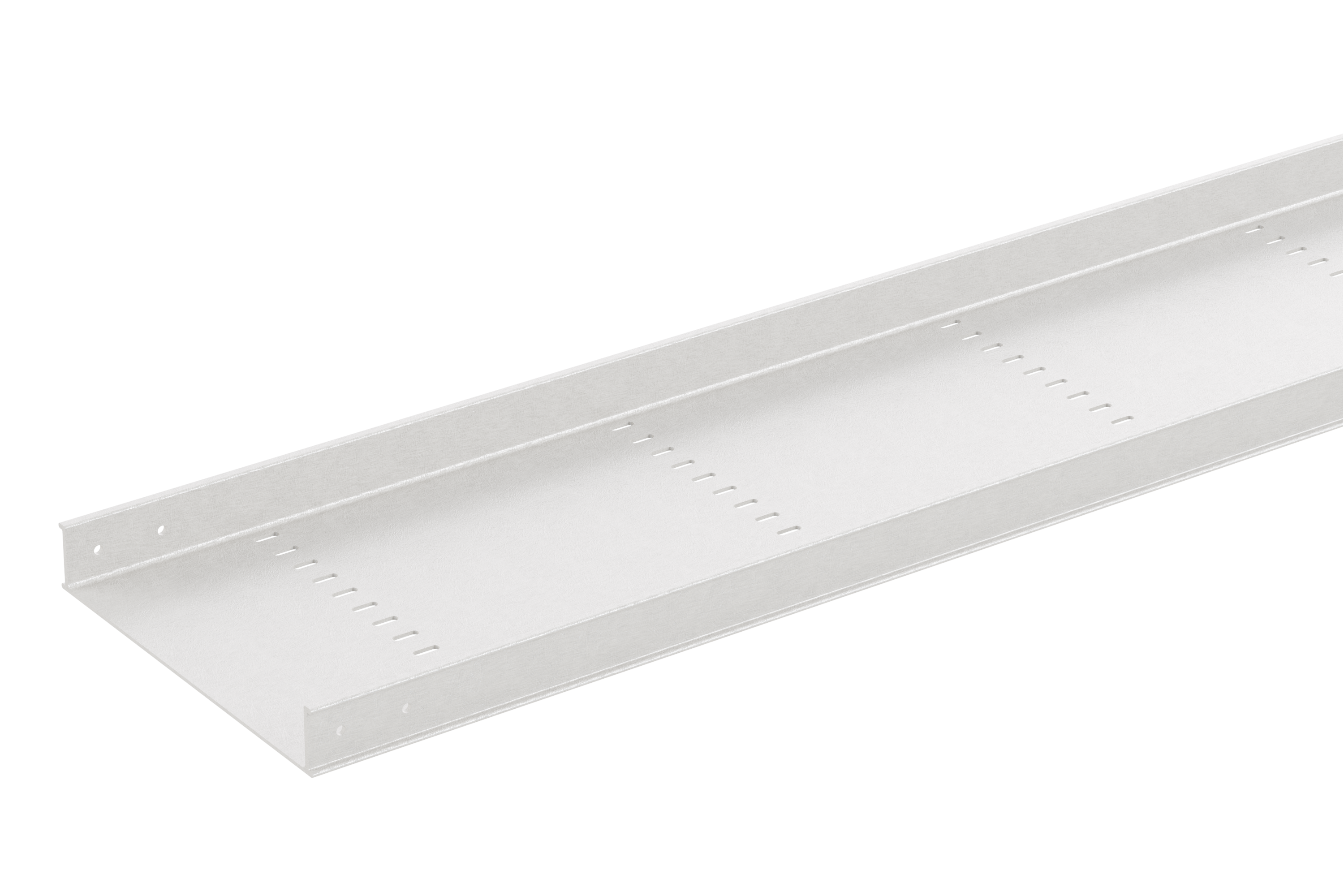

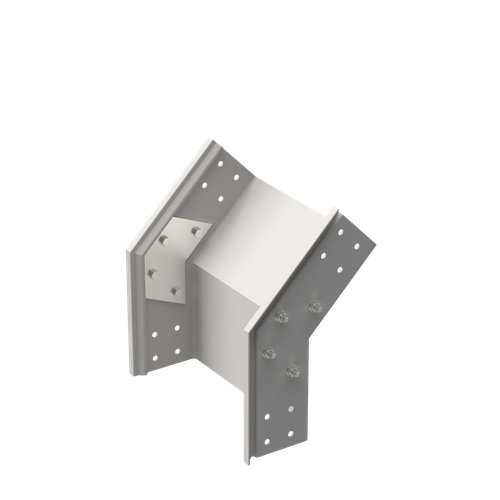

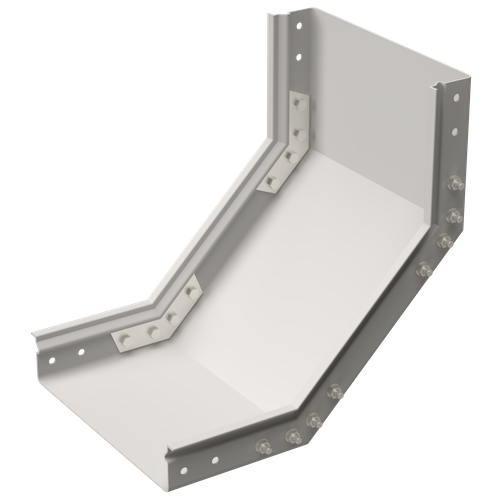

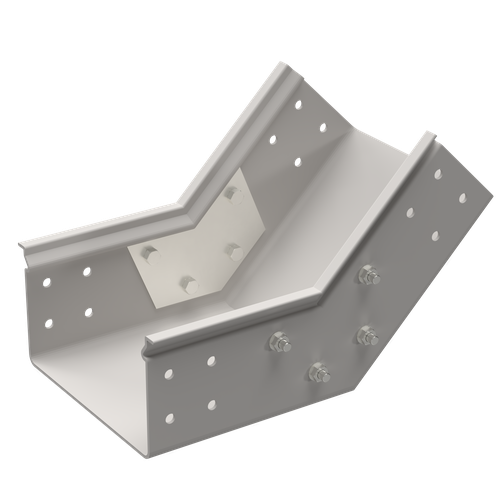

PERFORATED TYPE CABLE TRAY

The perforated type c channel solid bottom pre-drilled cable tray is designed for light loads namely instrumentation and control cable and for transition from cable tray to individuals control points.

FRP PERFORATED TYPE CABLE TRAY

Width (mm)	Height (mm)	Length (m)	Colour	Resin Type	Accessories

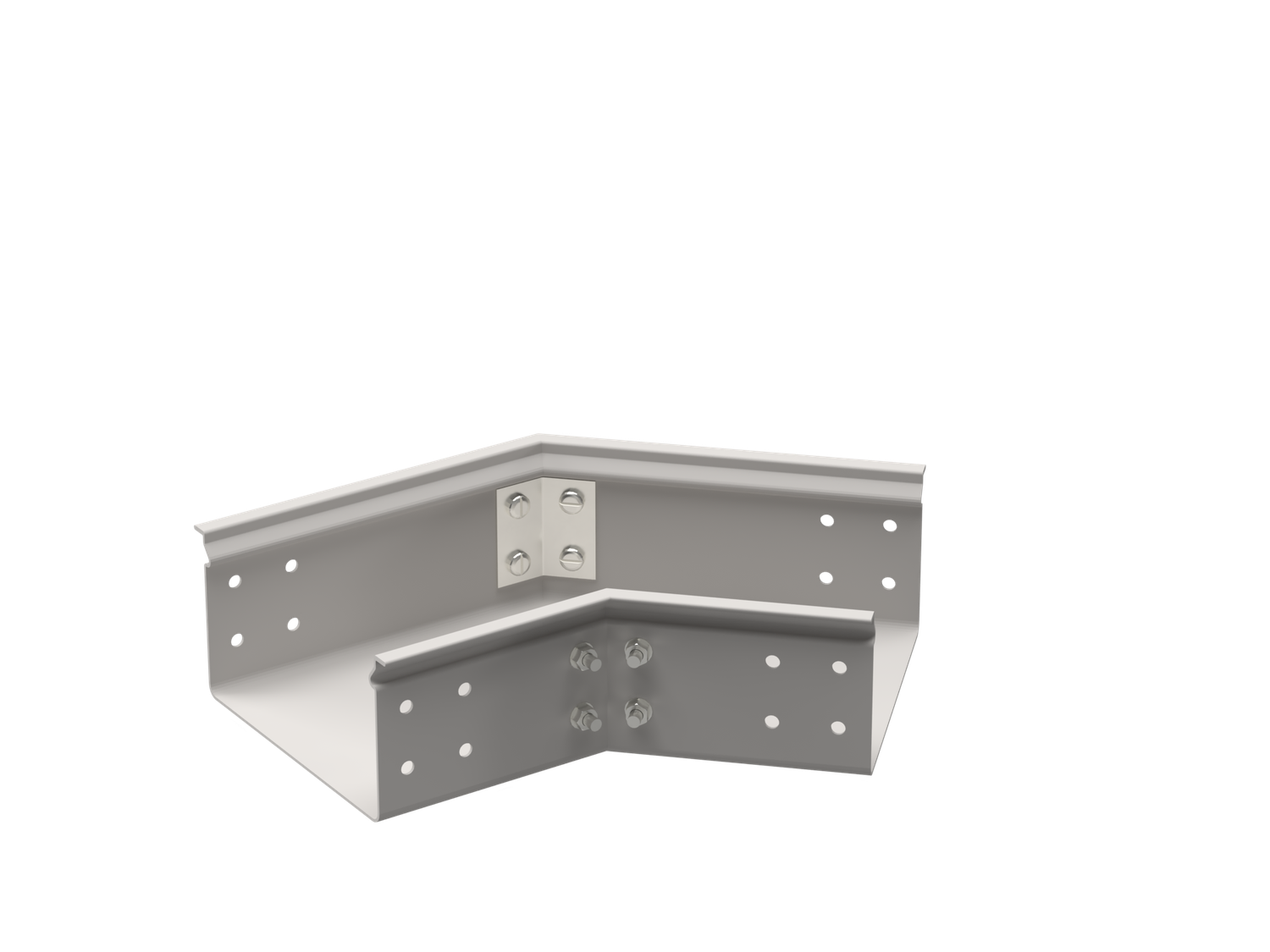

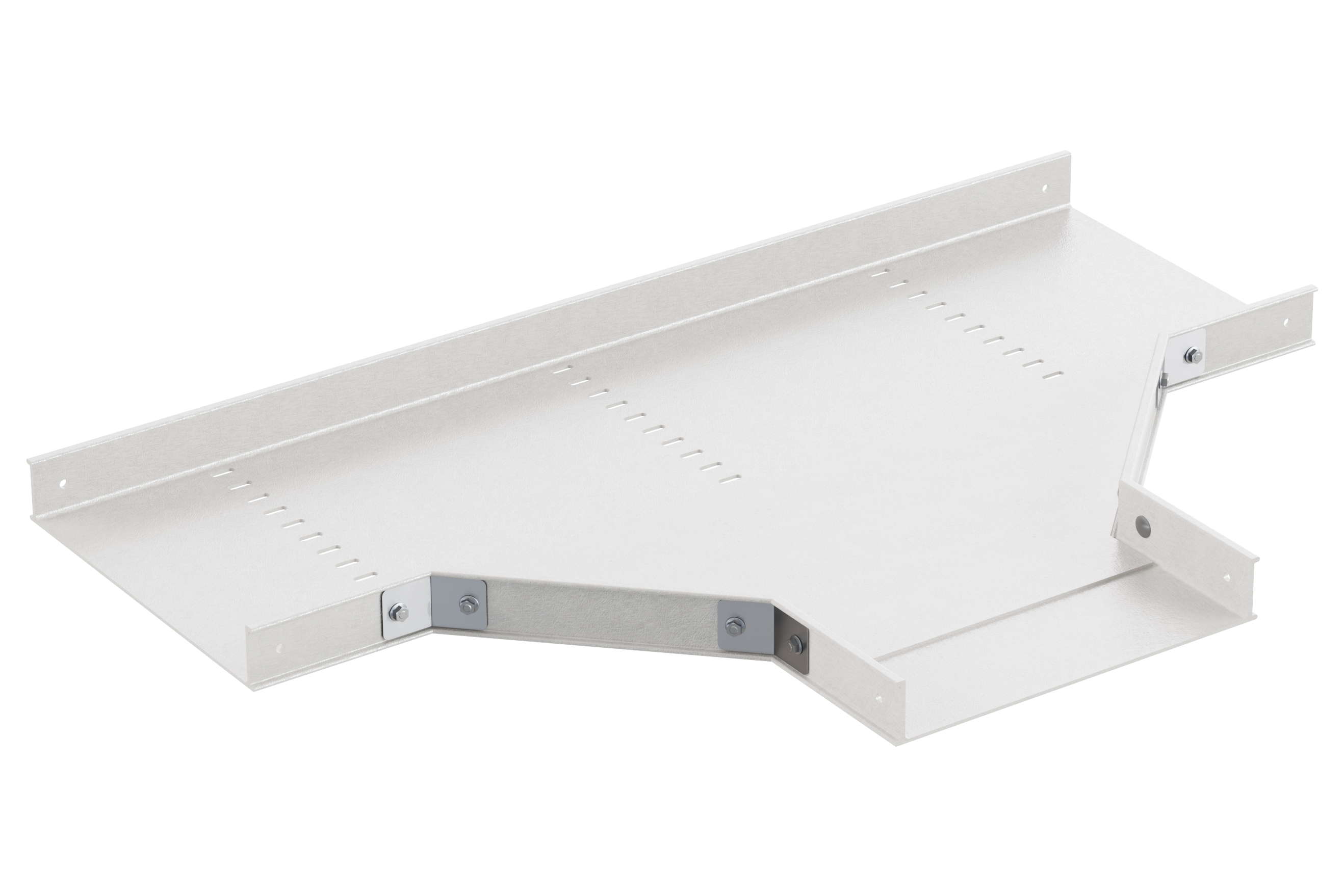

50	50	3 or as per Customer's requirement	Grey White or others	Polyester / Vinyl Ester	Bend, Tee, Cover, Cross
100	50/100
150	50
200	50/100
300	50/100
400	50/100
450	100
500	100
600	50/100/150

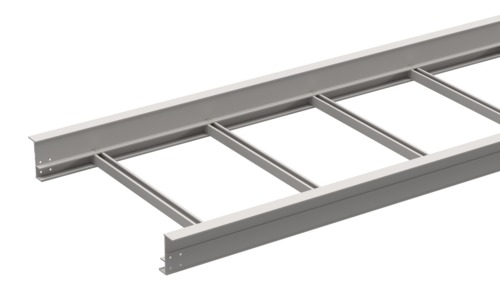

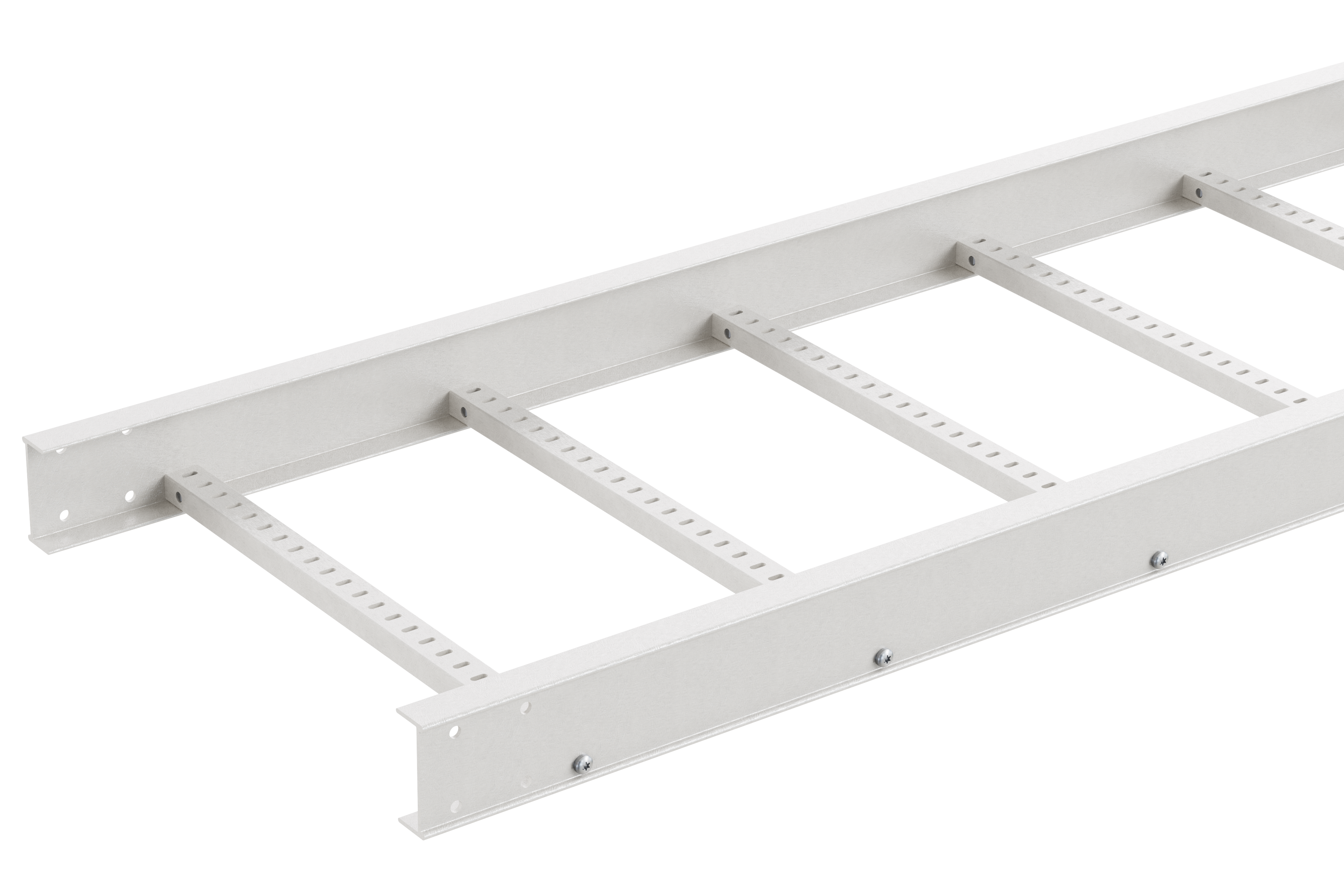

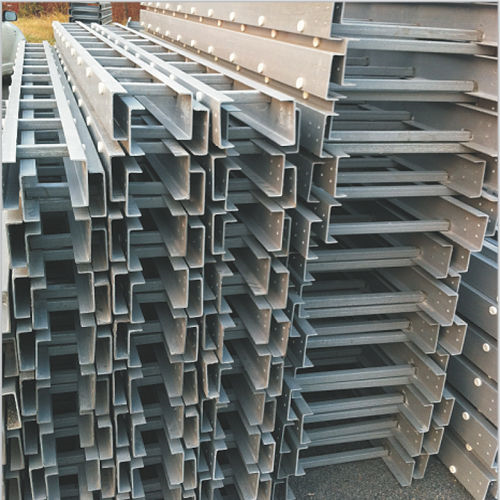

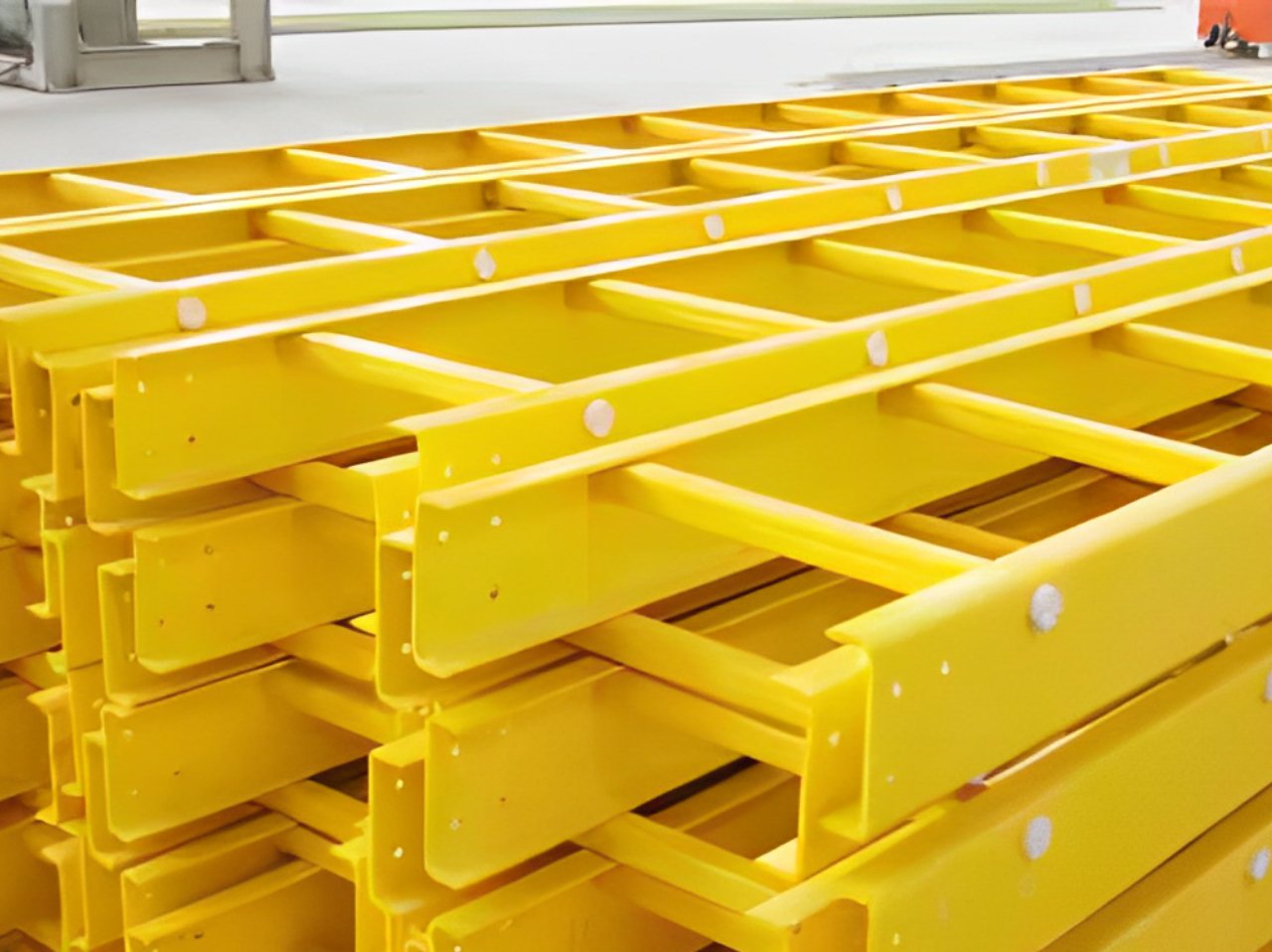

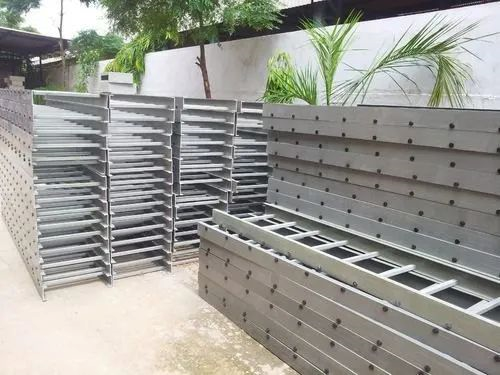

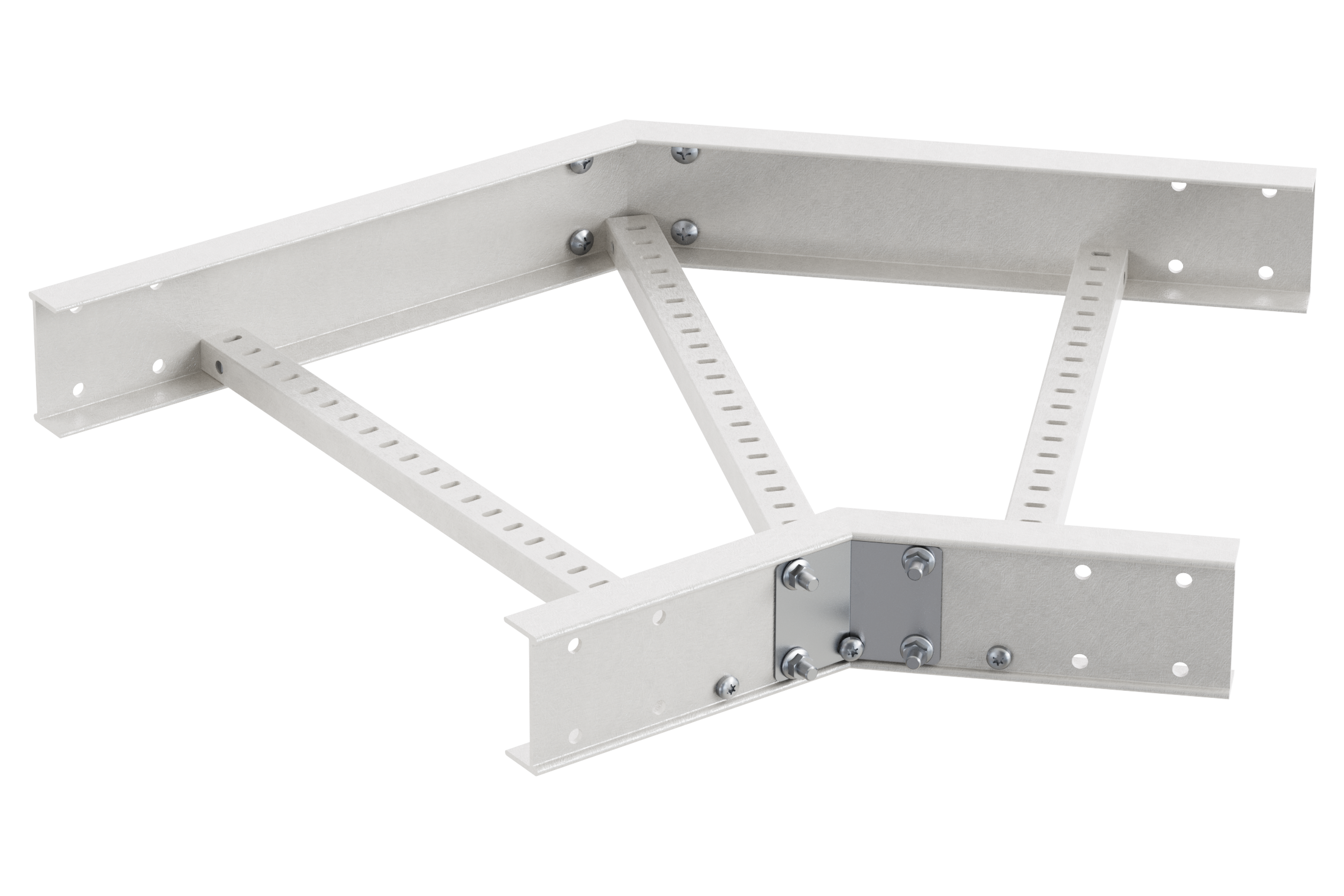

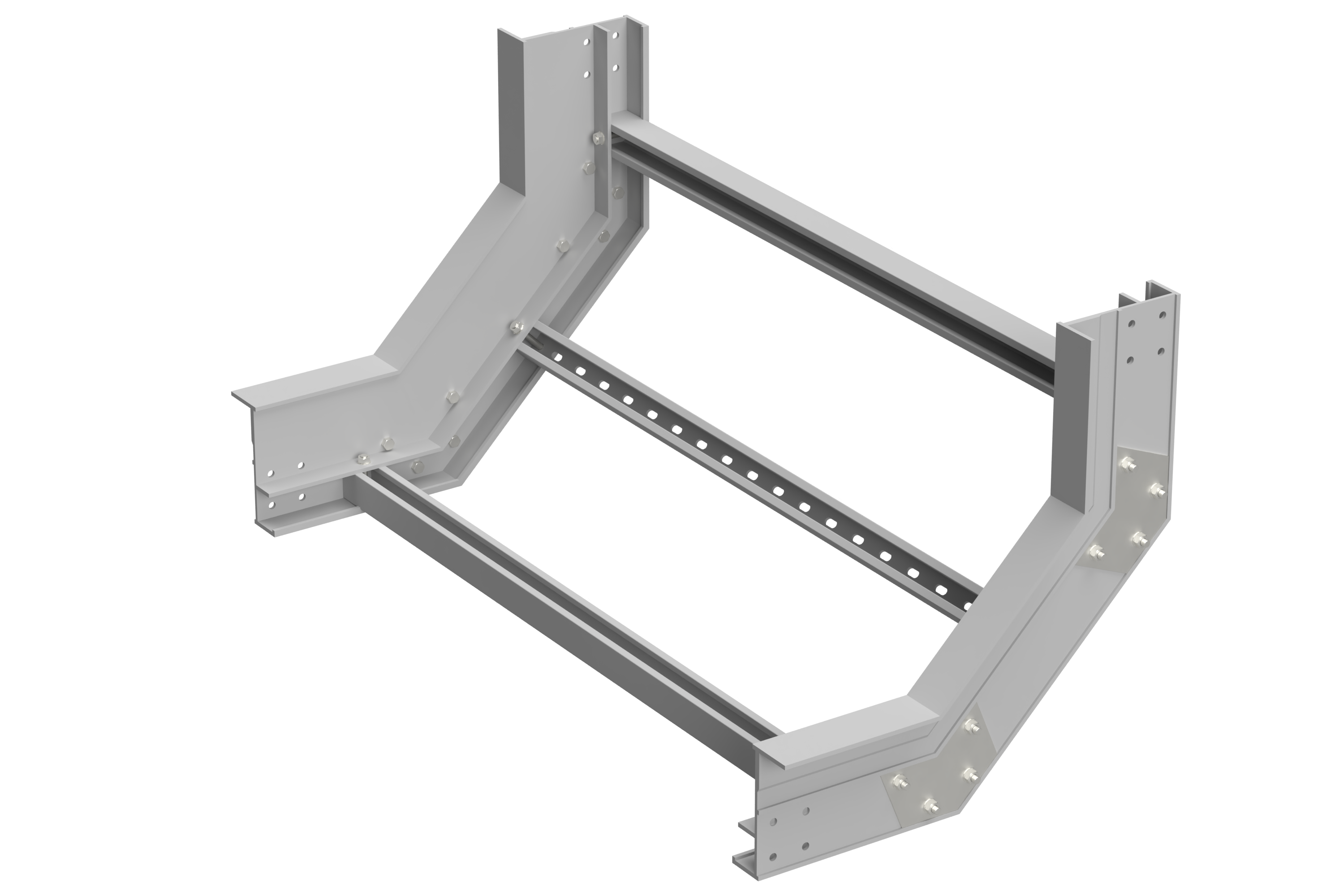

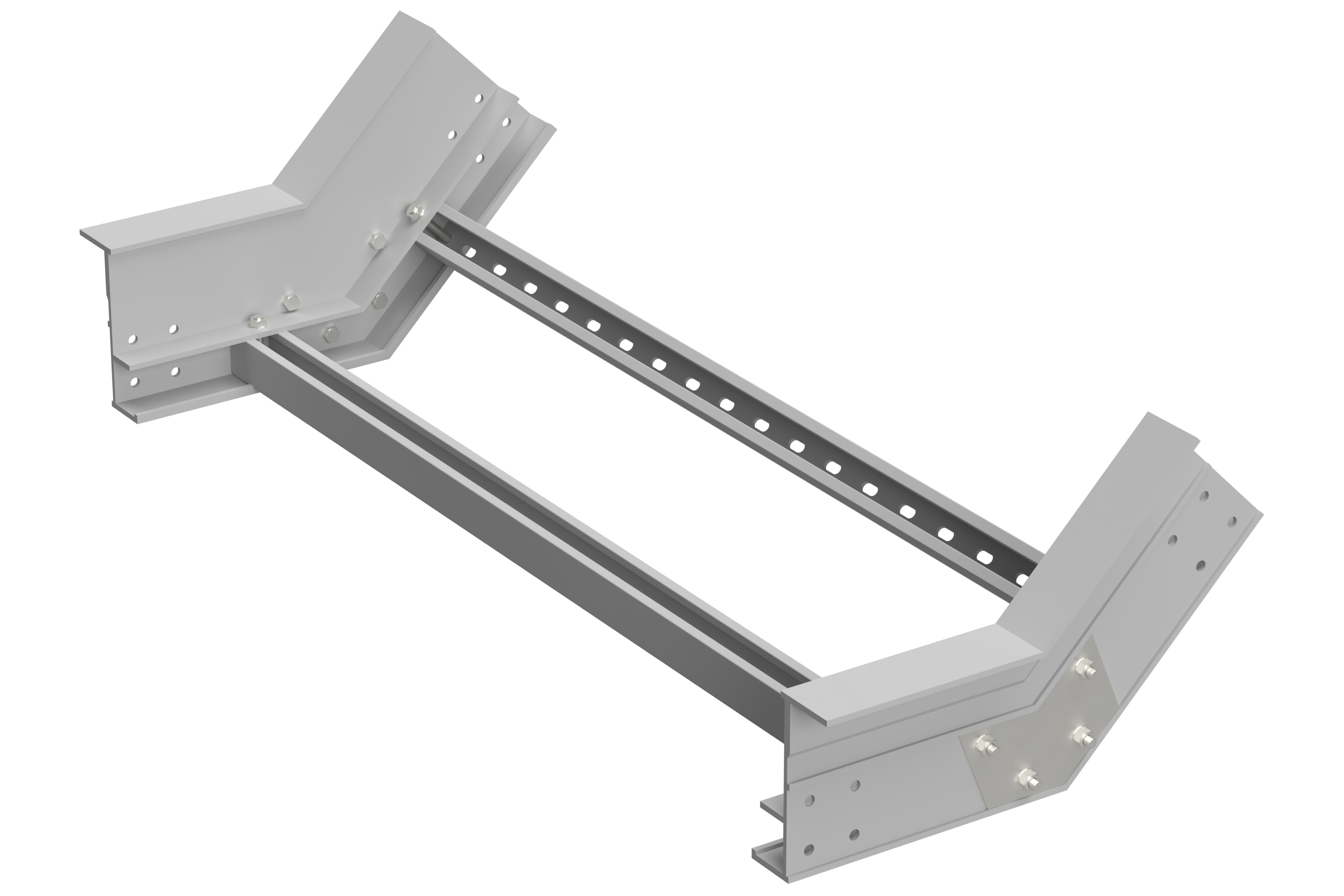

LADDER TYPE CABLE TRAY

The ladder type system comprises two channel or I-beam side rails connected by transverse rungs. All rungs to side channel or I-beam connected with mechanical and chemical (adhesive). The space between rungs is 300 mm. Cable Trays are joined by coupler.

FRP LADDER TYPE CABLE TRAY

Width (mm)	Height (mm)	Length (m)	Colour	Resin Type	Accessories

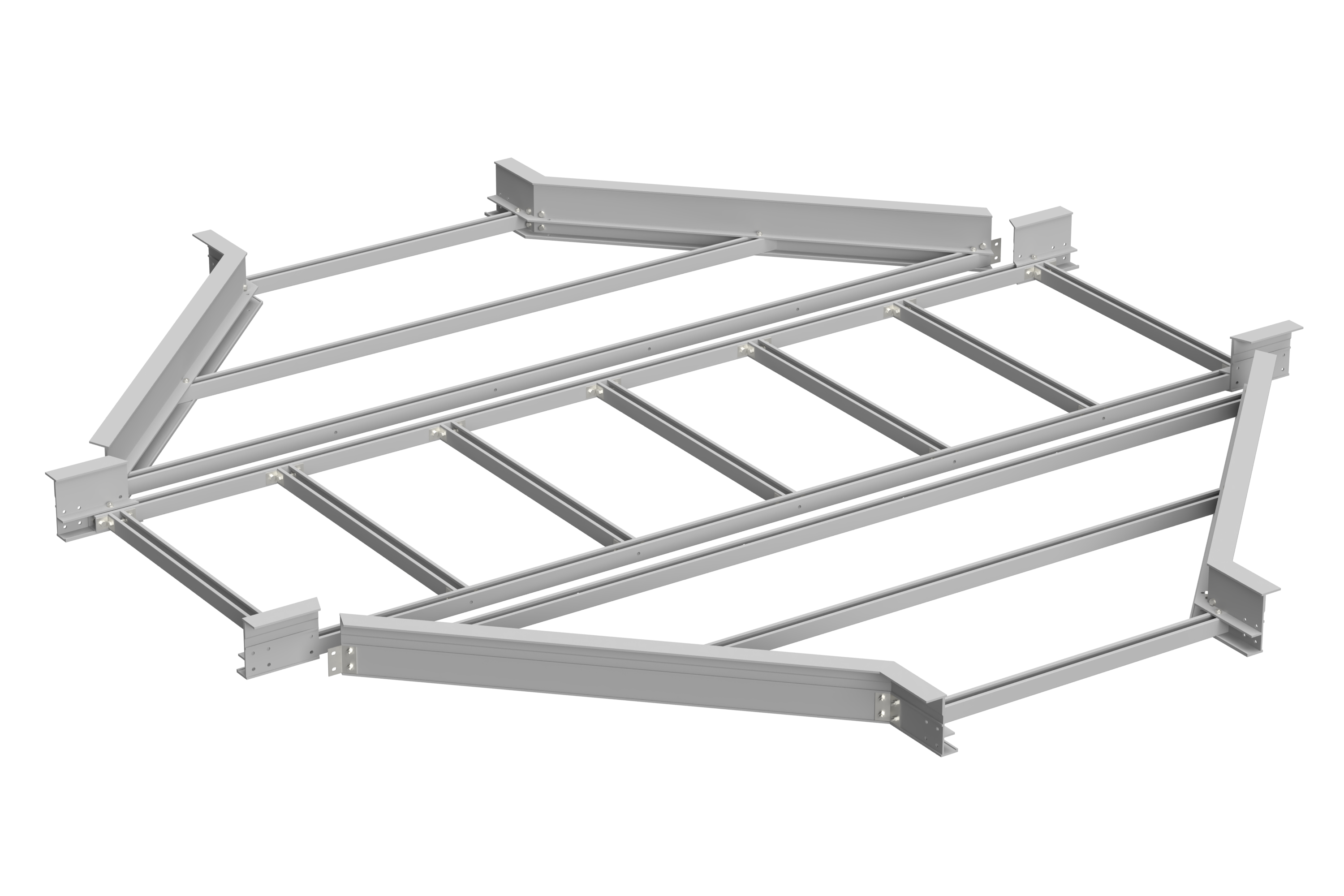

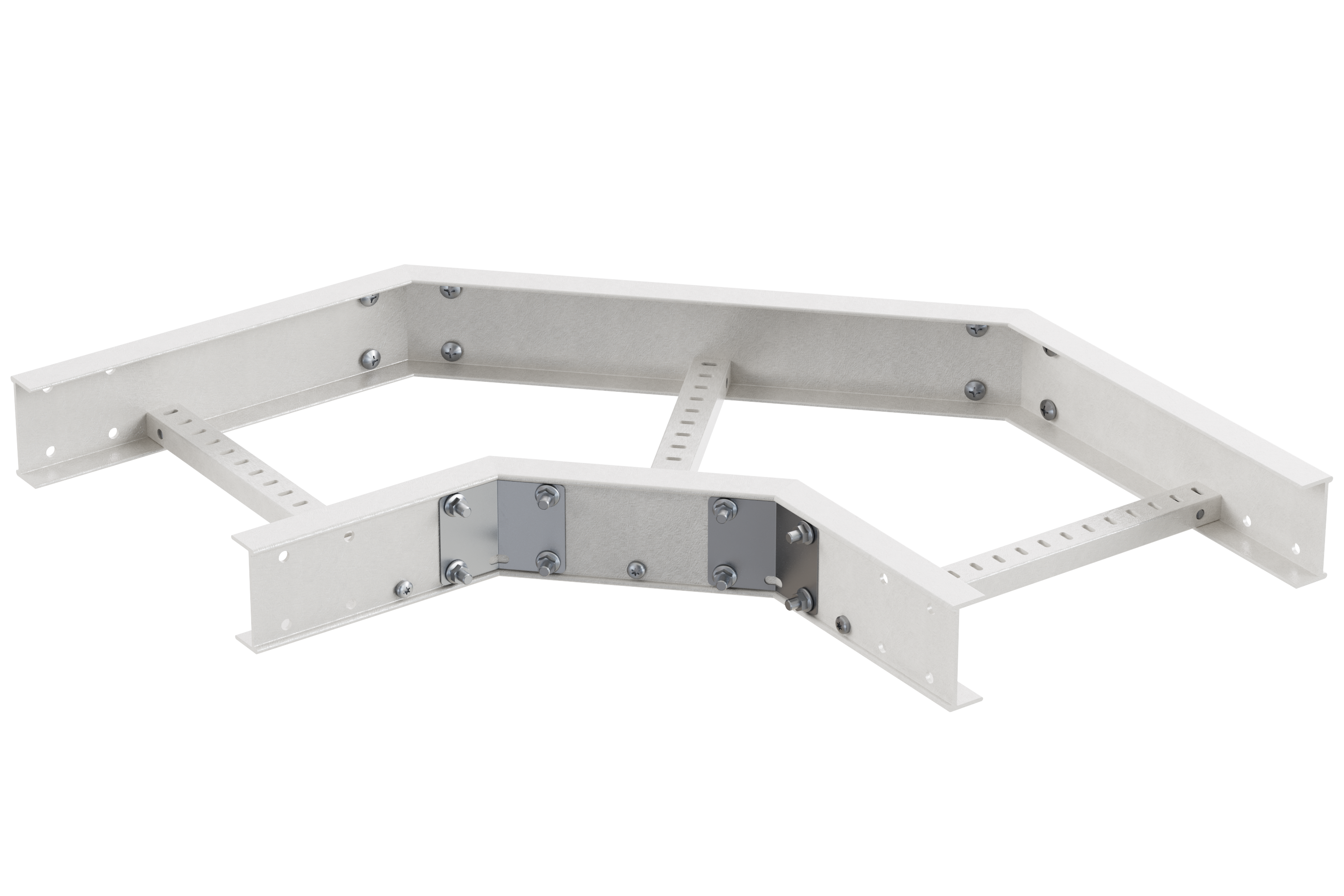

50	50	3 or as per Customer's requirement	Grey White or others	Polyester / Vinyl Ester	Bend, Tee, Cover, Cross
100	50/100
150	50
200	50/100
300	50/100
400	50/100
450	100
500	100
600	50/100/150
