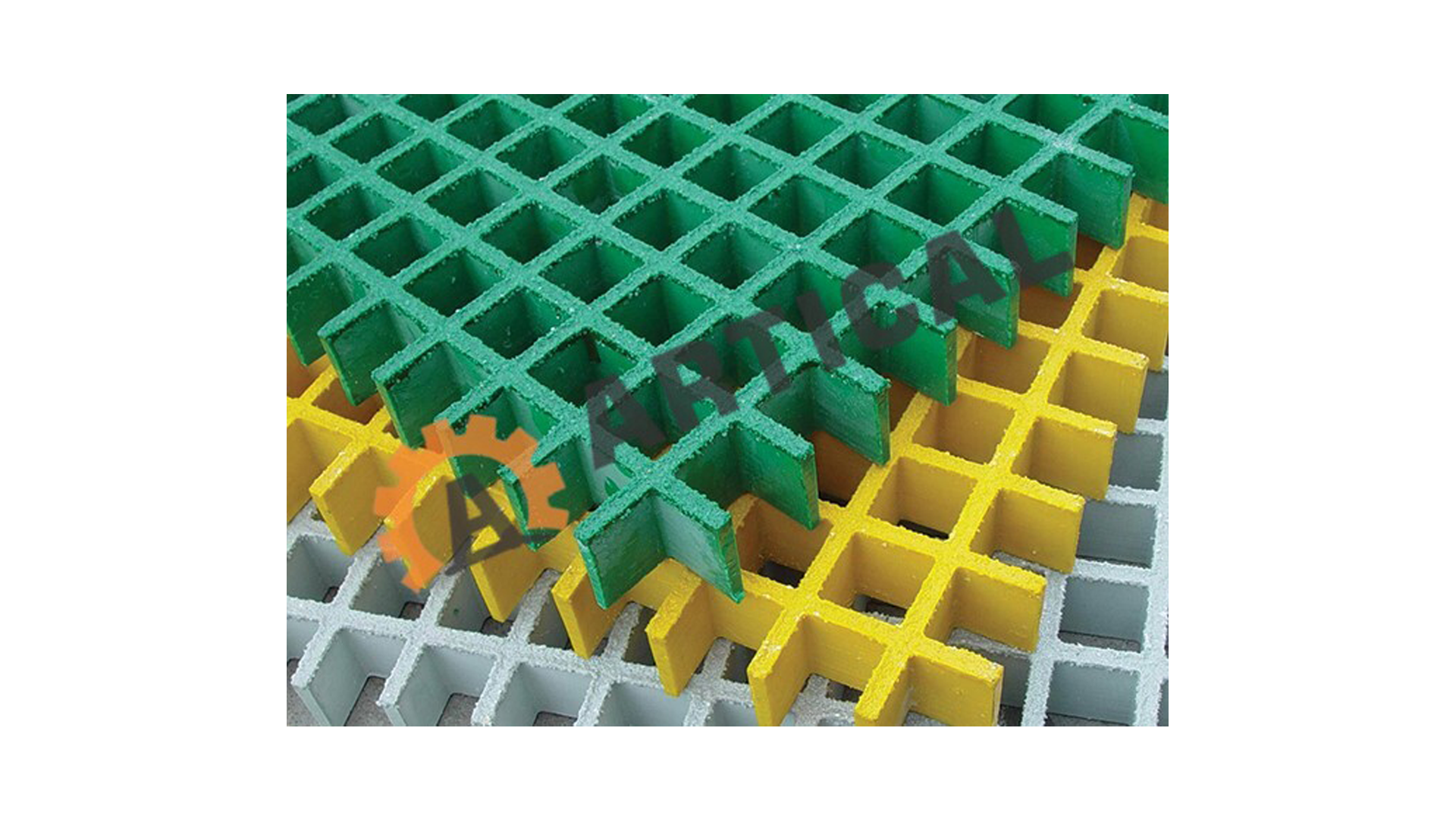

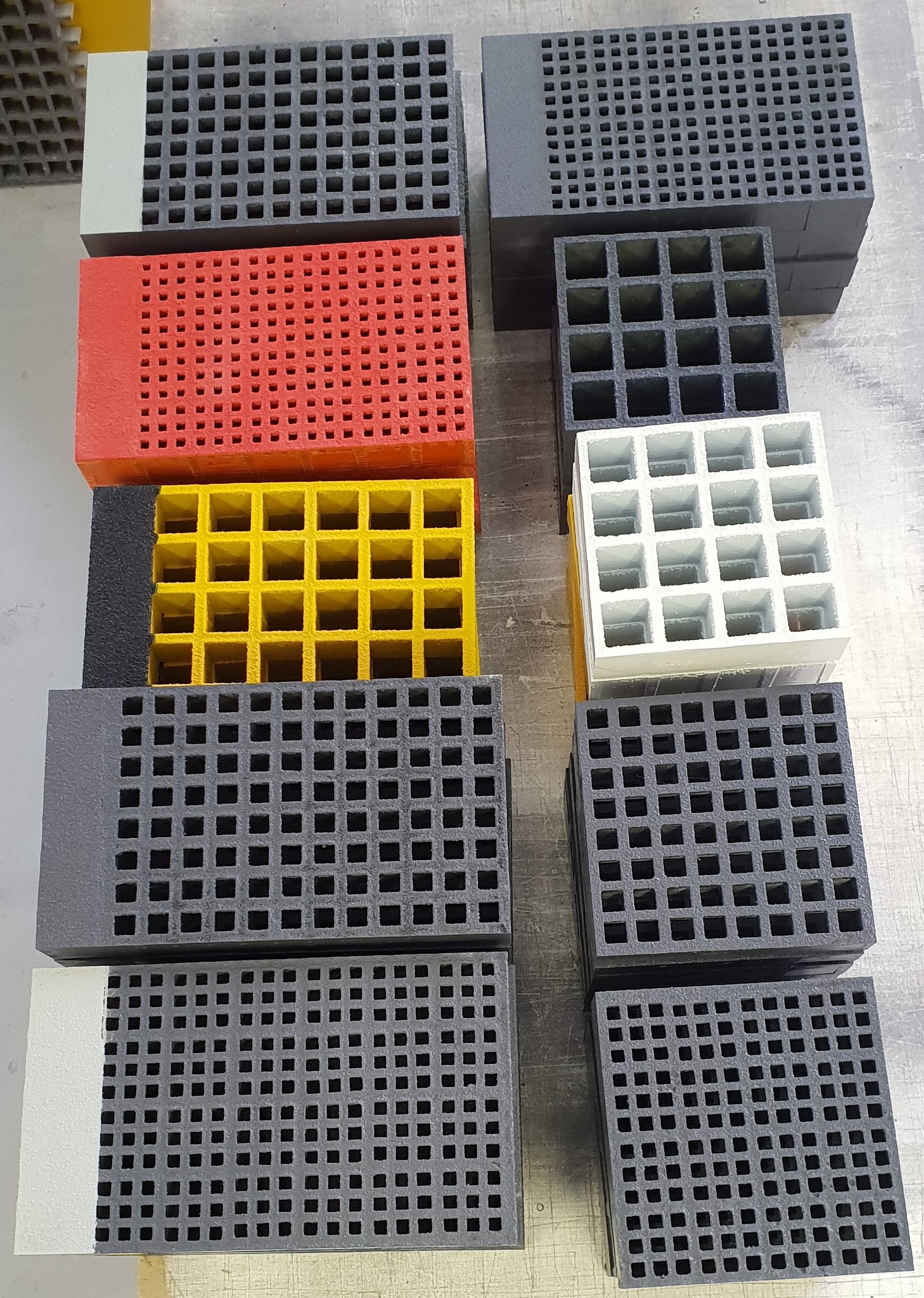

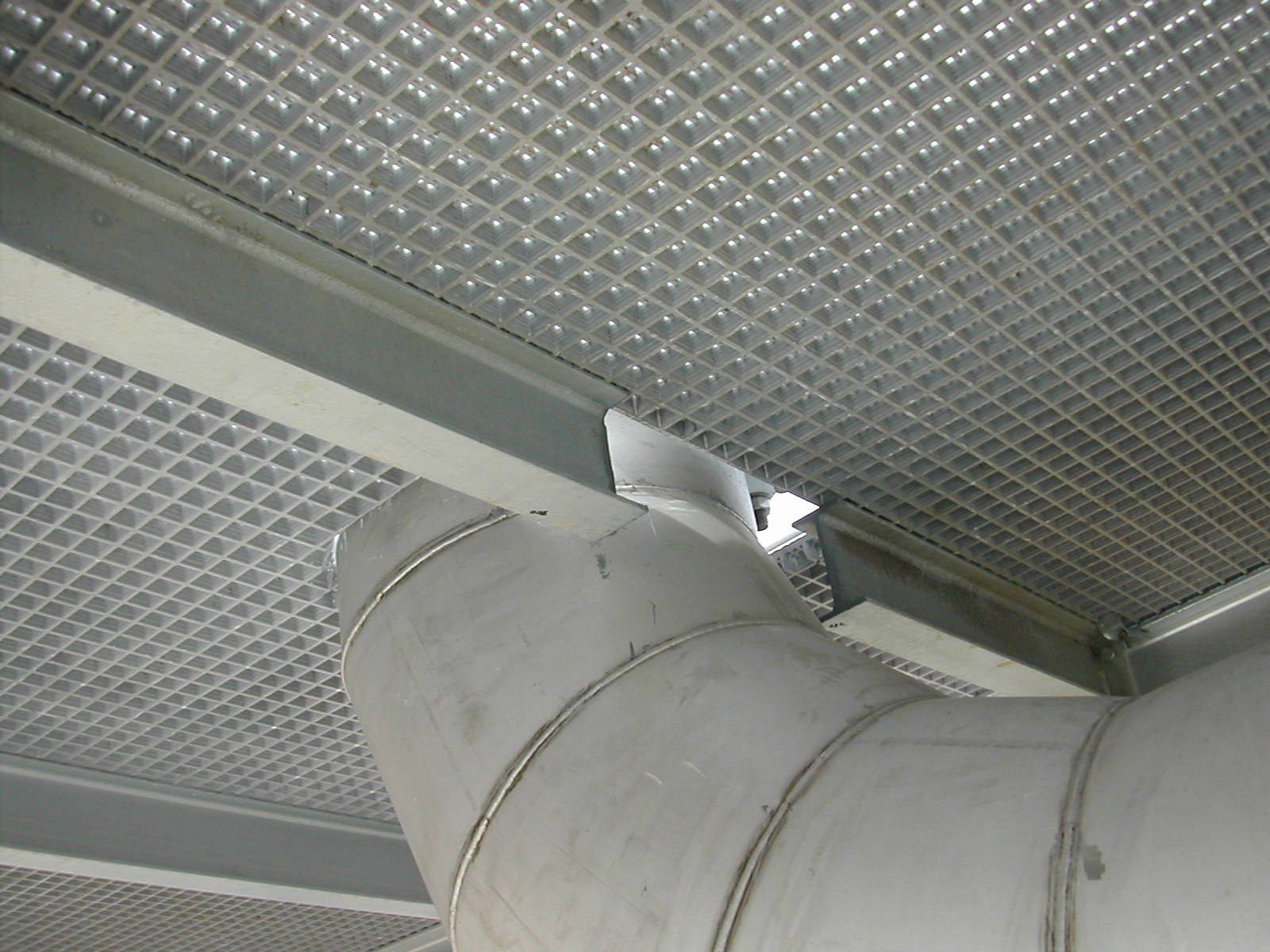

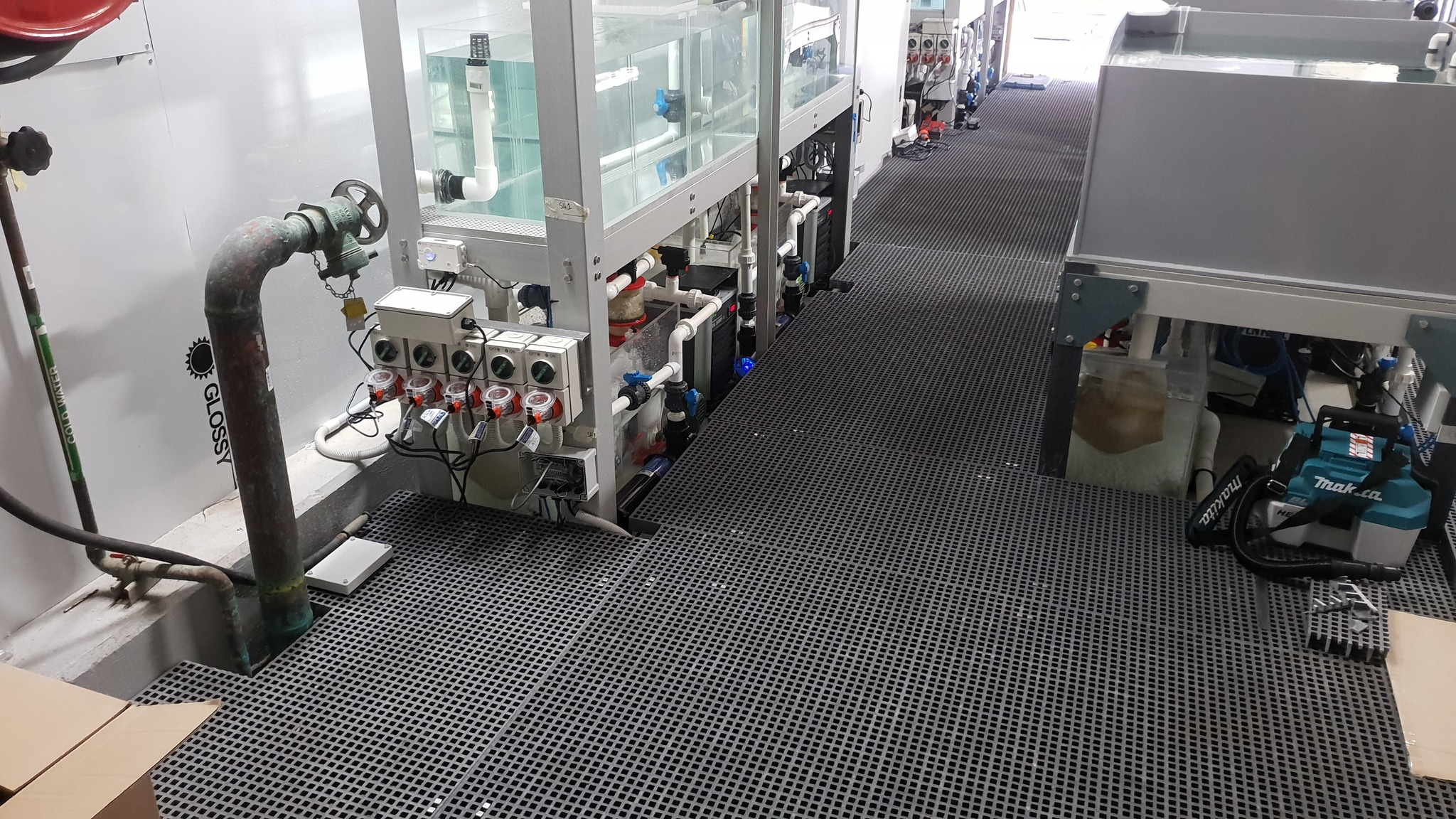

FRP Grating

Kriza is a world-class FRP Grating manufacturer that provides corrosion resistance, Fire Retardant, UV Resistance, long life & easy to fabricate FRP grating. We have the latest technology which produces high strength FRP Grating to bear maximum load capacity with minimum deflection.

Kriza have manufacturing FRP GRP moulded and Pultruded Grating. We have supplied our grating to major chemical, Refineries & offshore industries in harsh conditions. Our grating life is a minimum of 25 years.

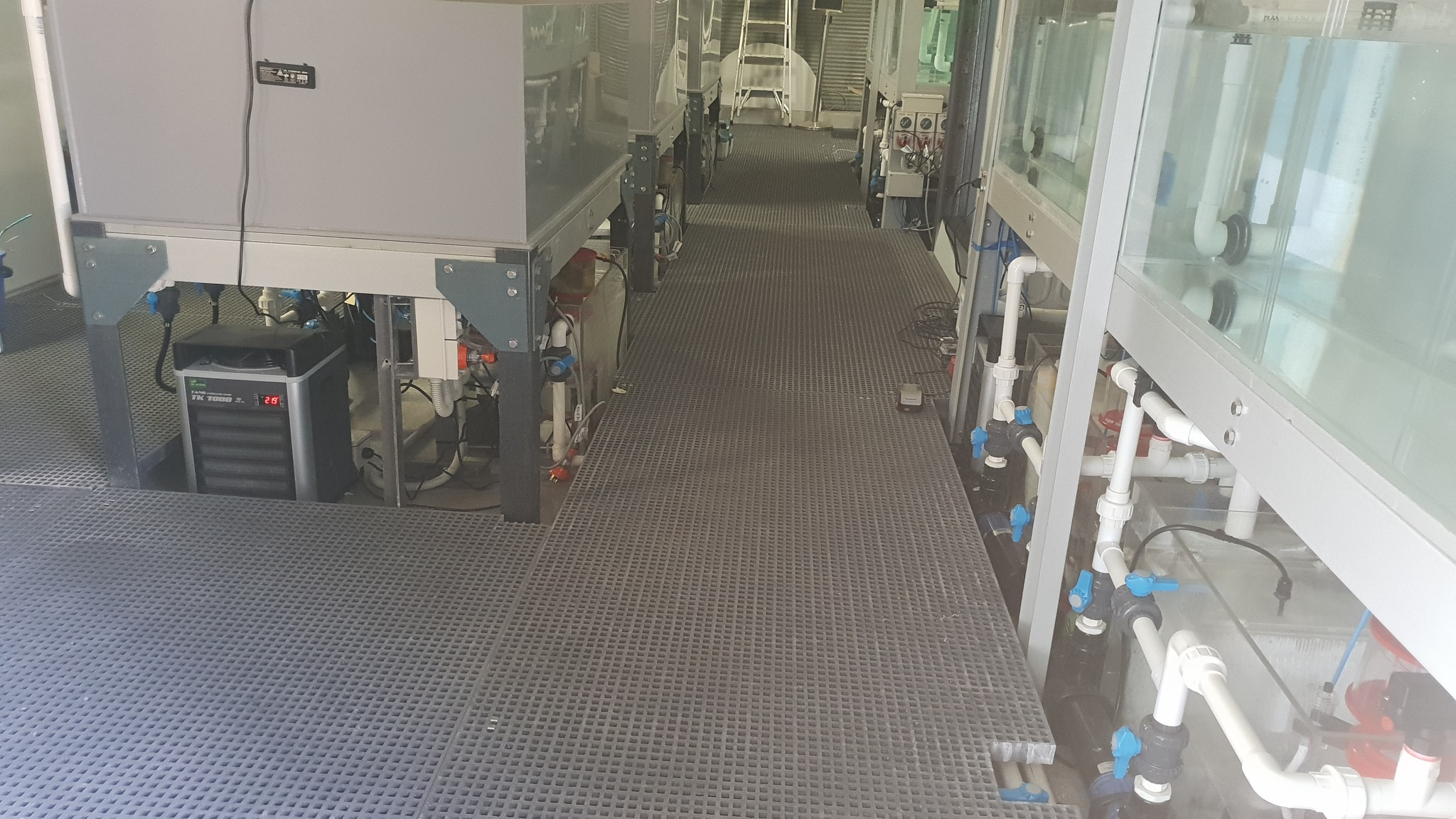

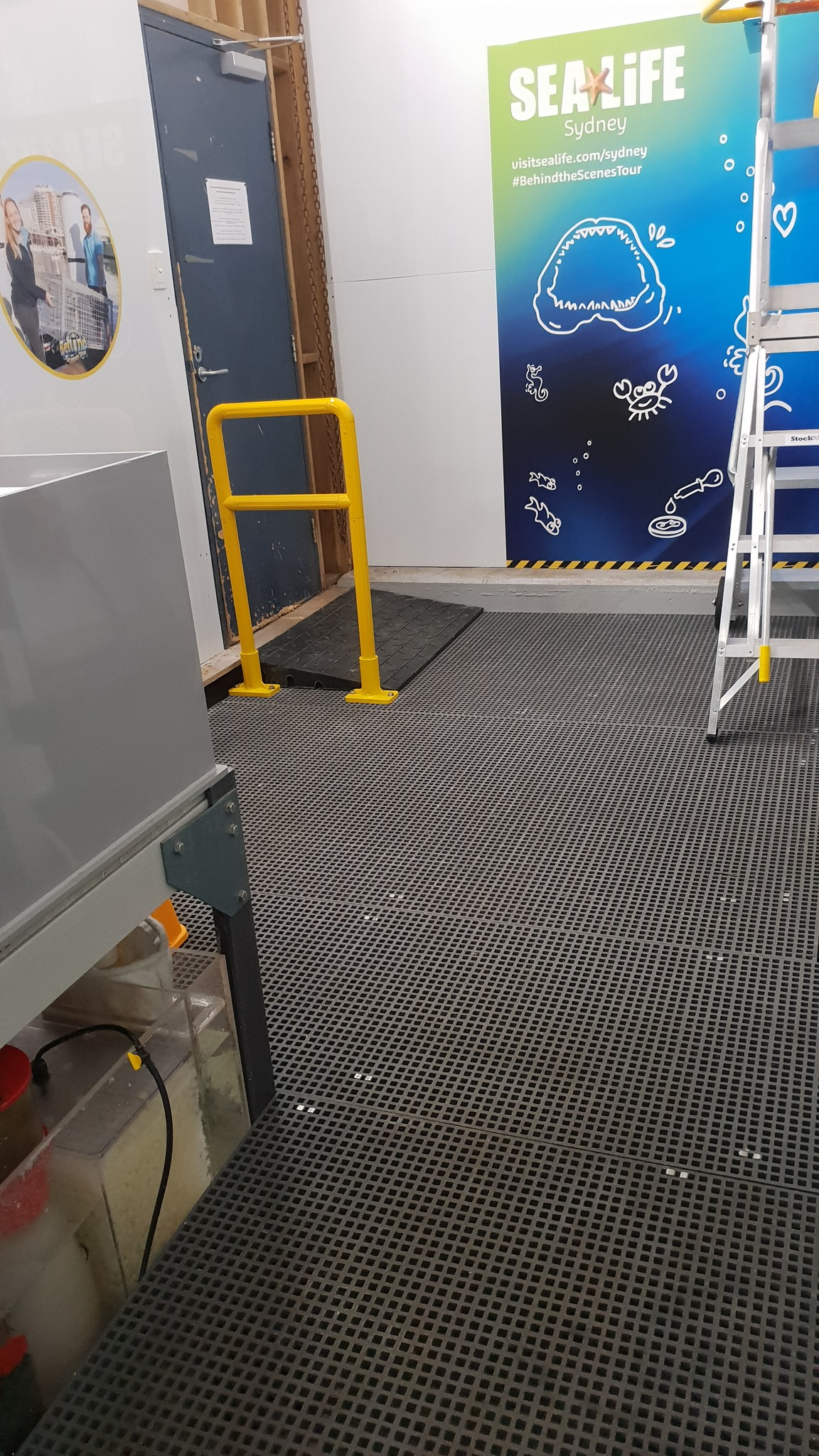

Moulded FRP Gratings

KRIZA FRP Moulded grating is manufactured in an open, heated mould system by professional skilled workers. Continuous glass roving is laid down in the mould in alternating layers in both directions and completely wetted out with resin. This continuous process produces an integral plate which provides excellent corrosion resistance as well as bi-directional strength. These gratings are available in polyester, vinyl ester or phenolic resin which are all self-extinguishing and UV resistance for added durability and safety.

MOULDED GRATING SURFACE

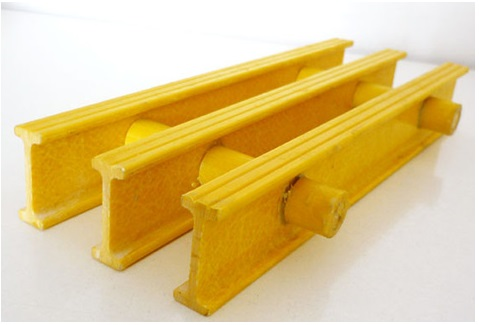

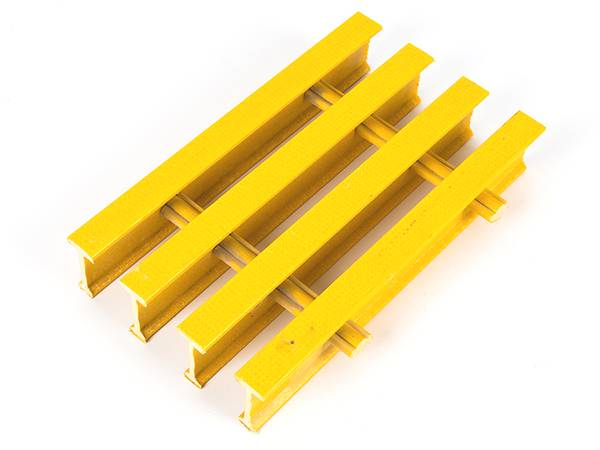

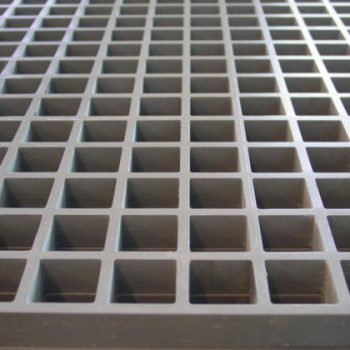

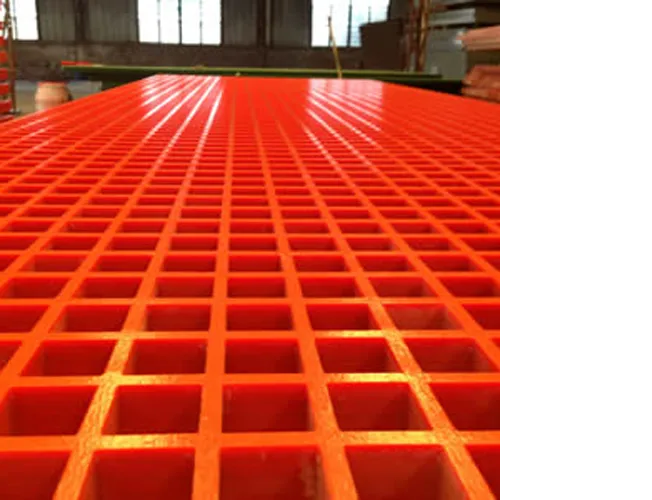

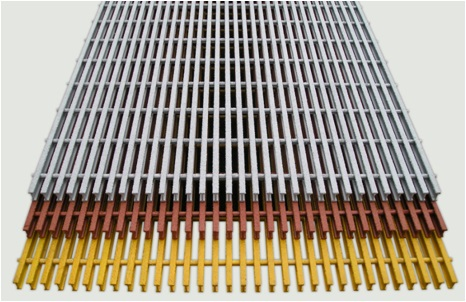

Smooth Top

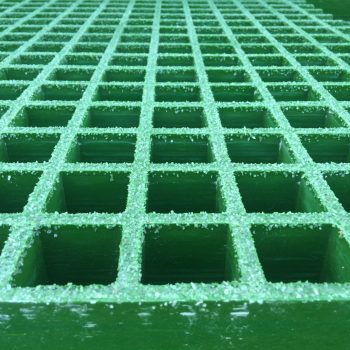

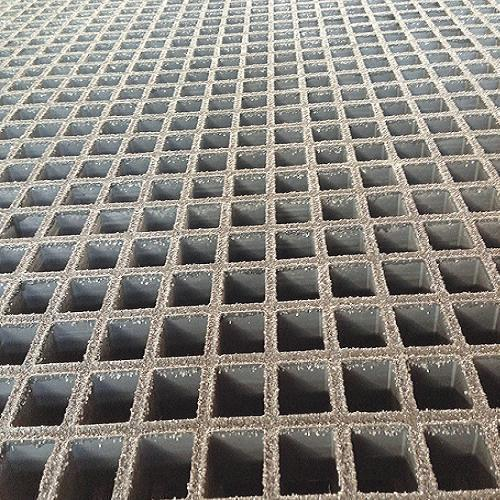

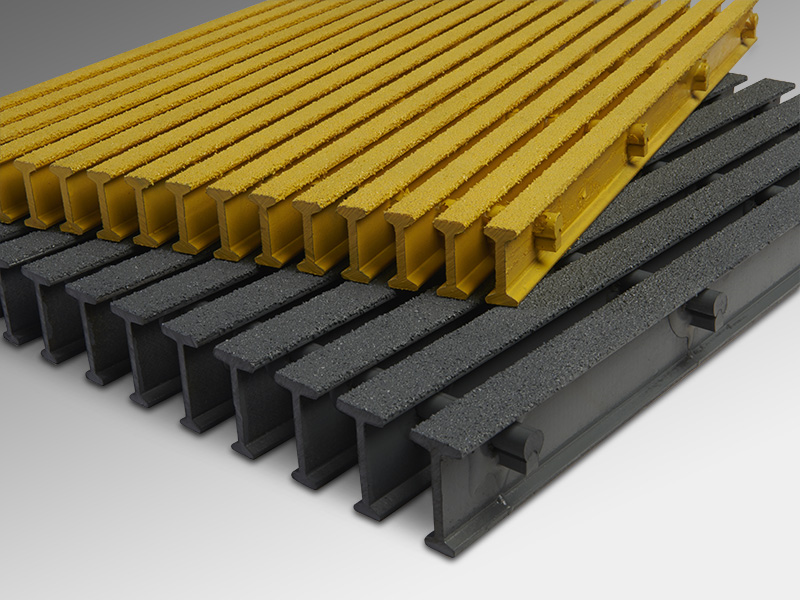

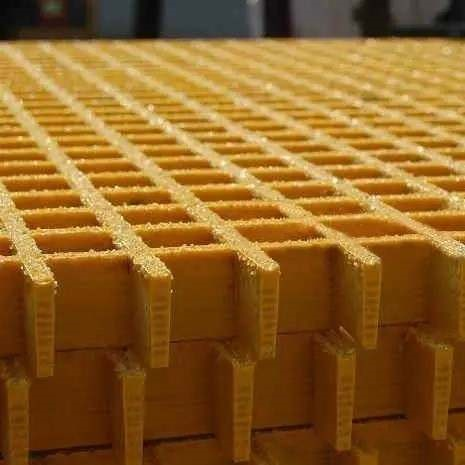

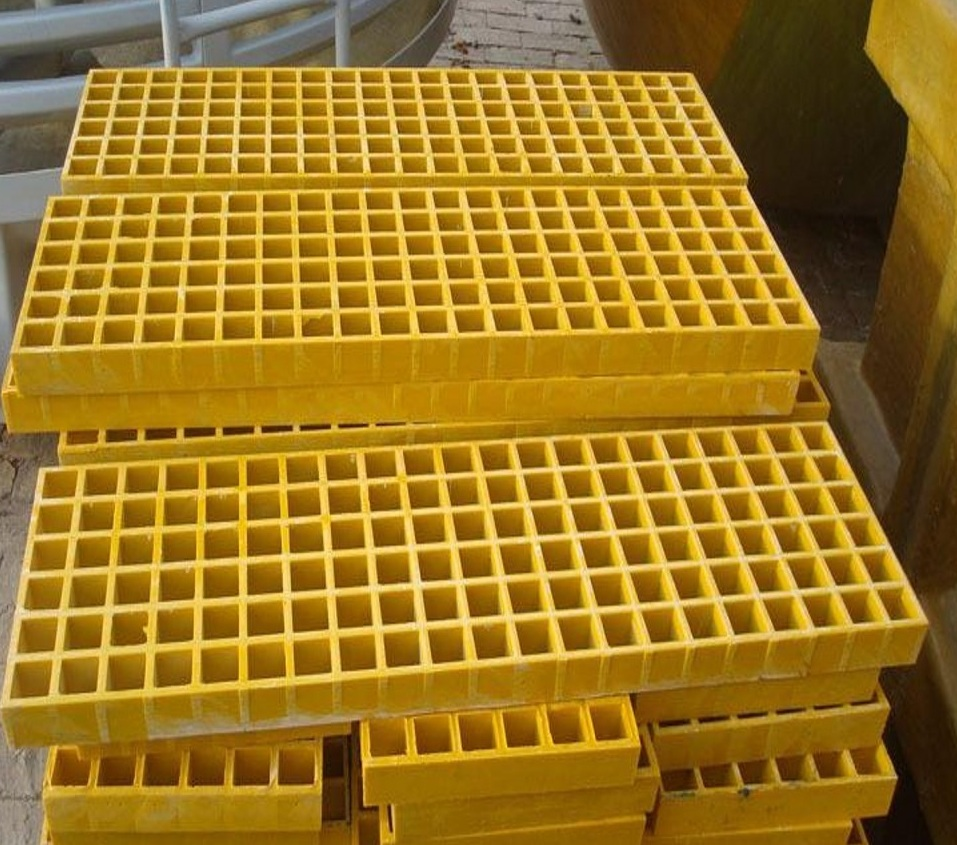

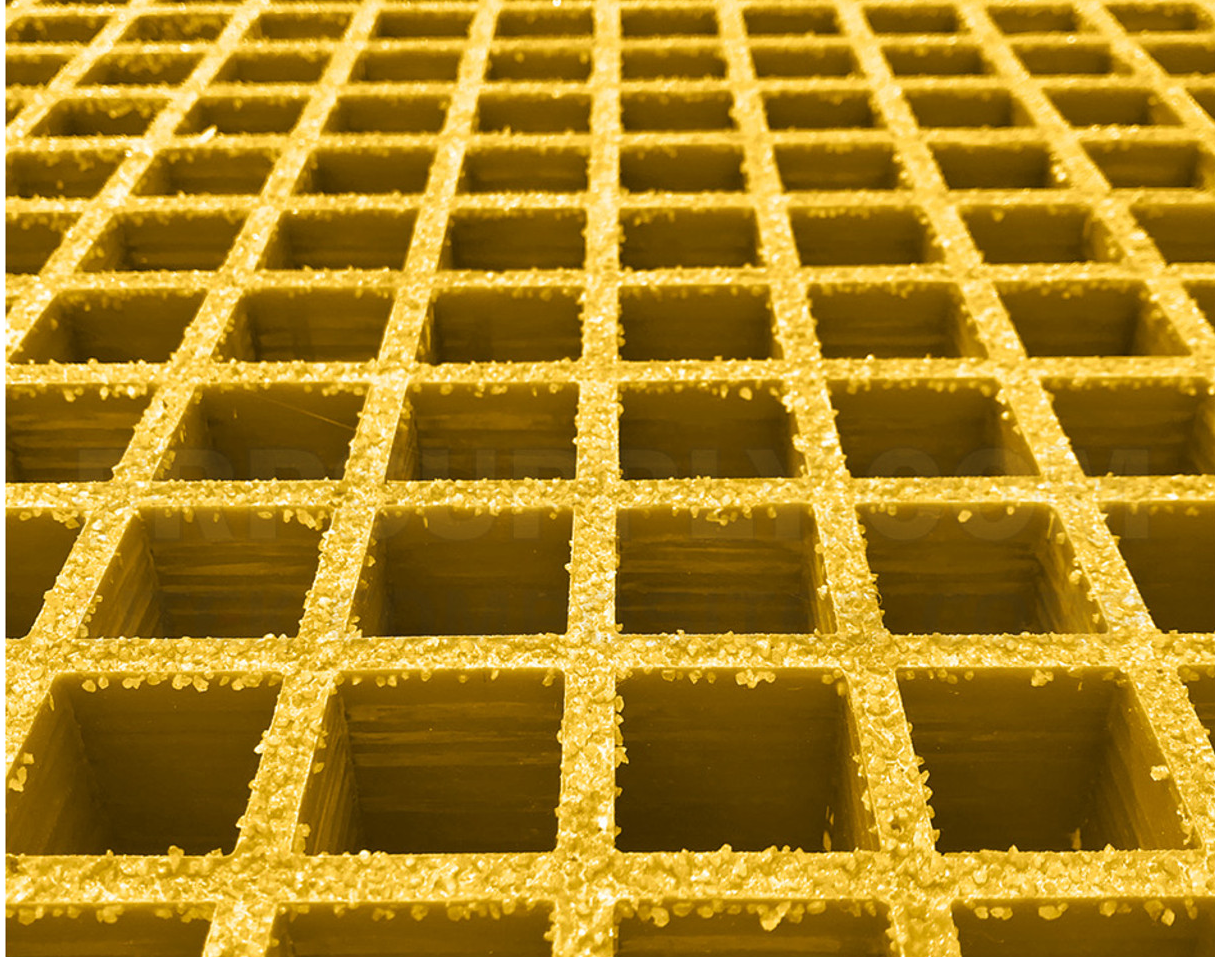

Gritted Top Surface

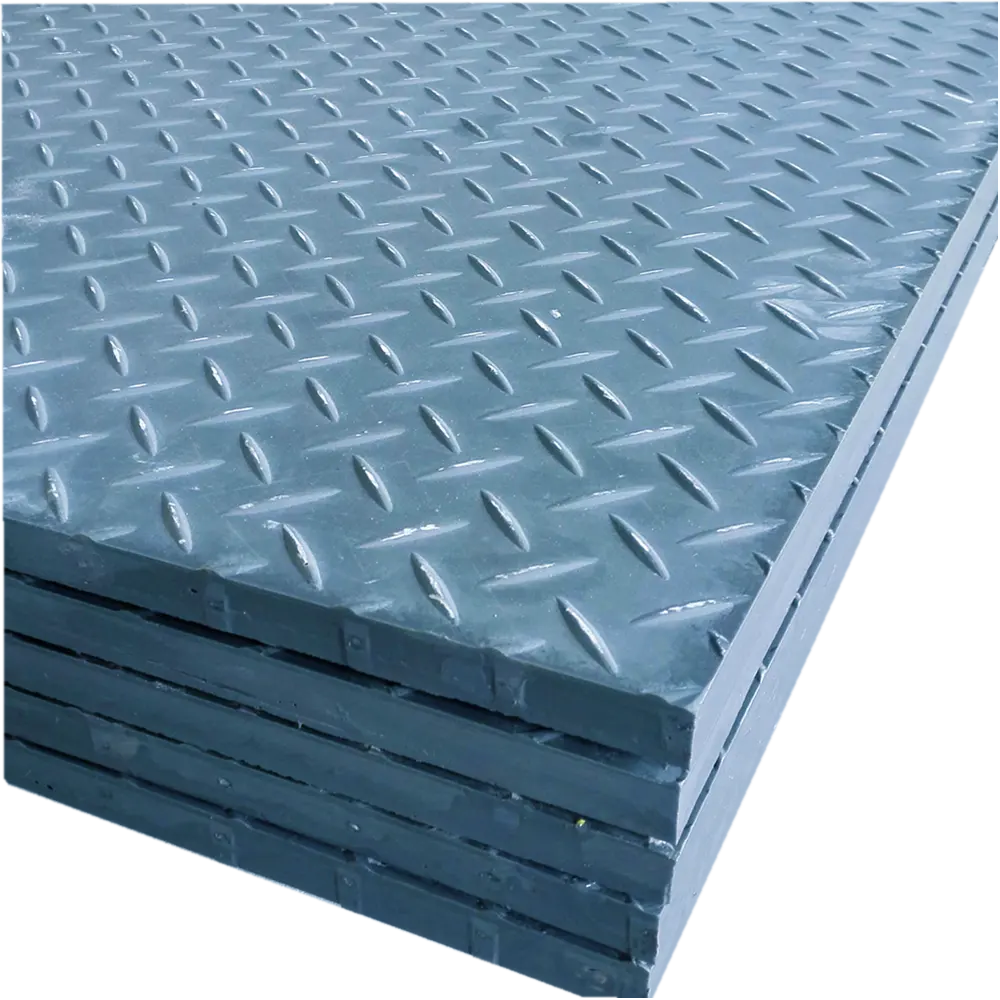

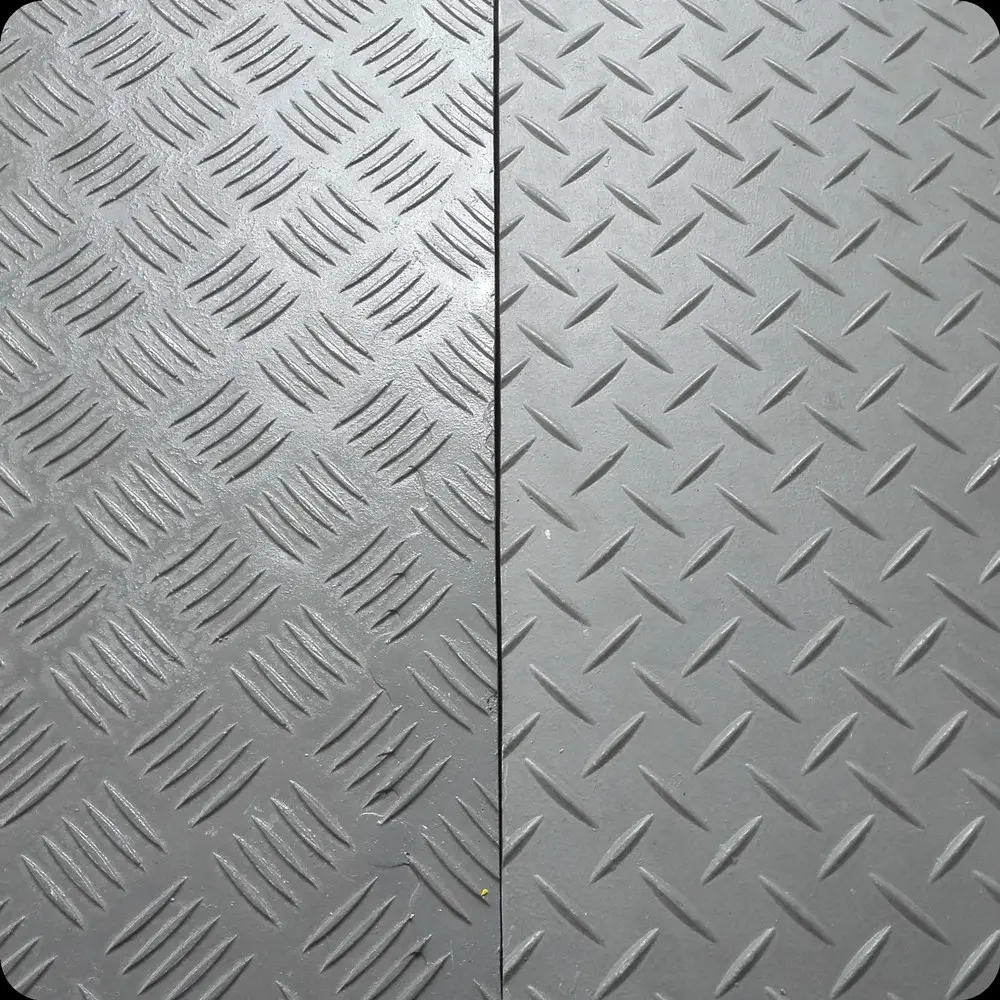

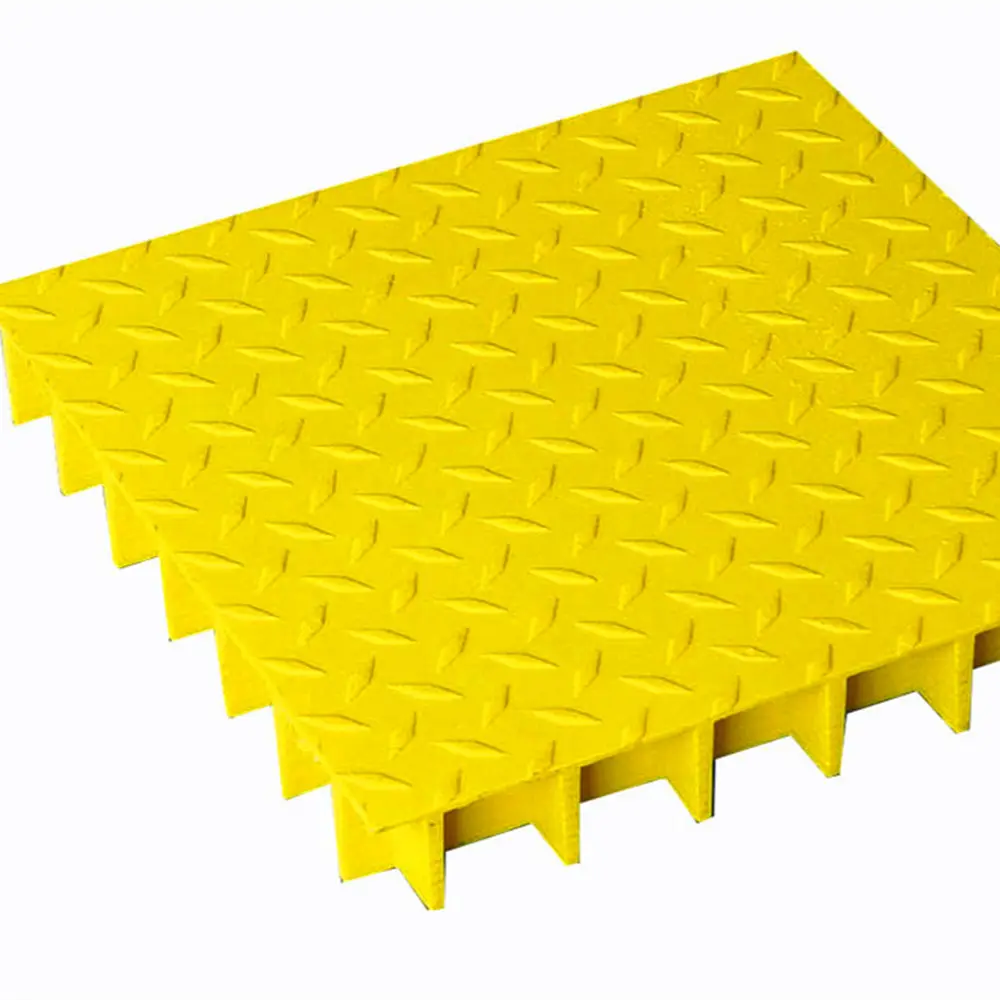

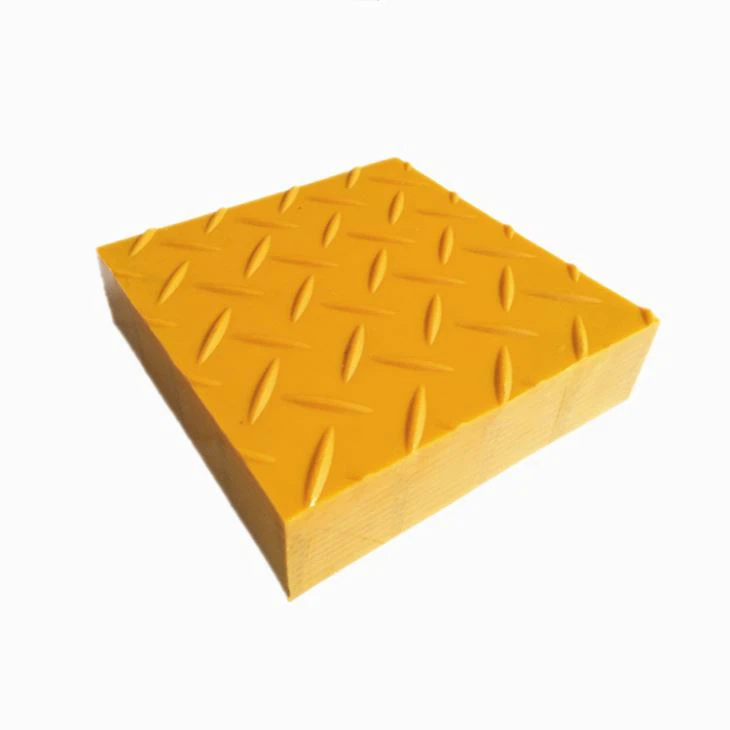

Chequered Plate

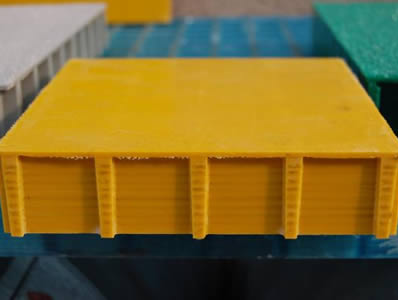

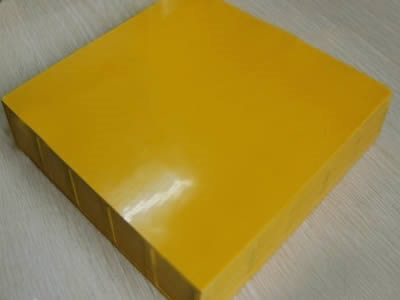

Plain Surface

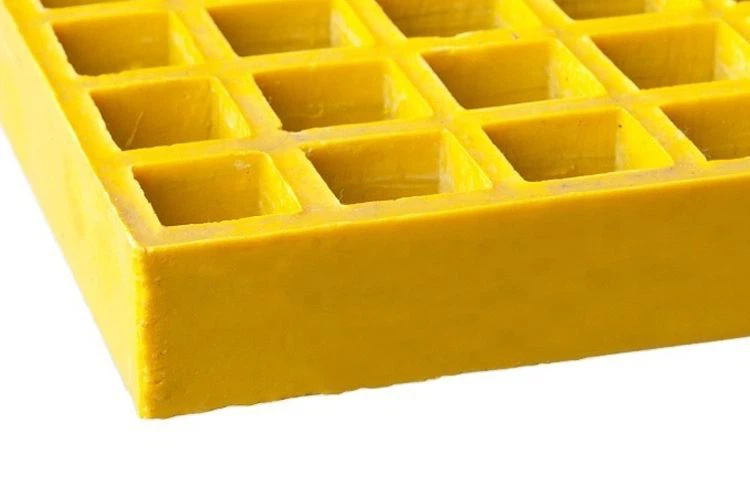

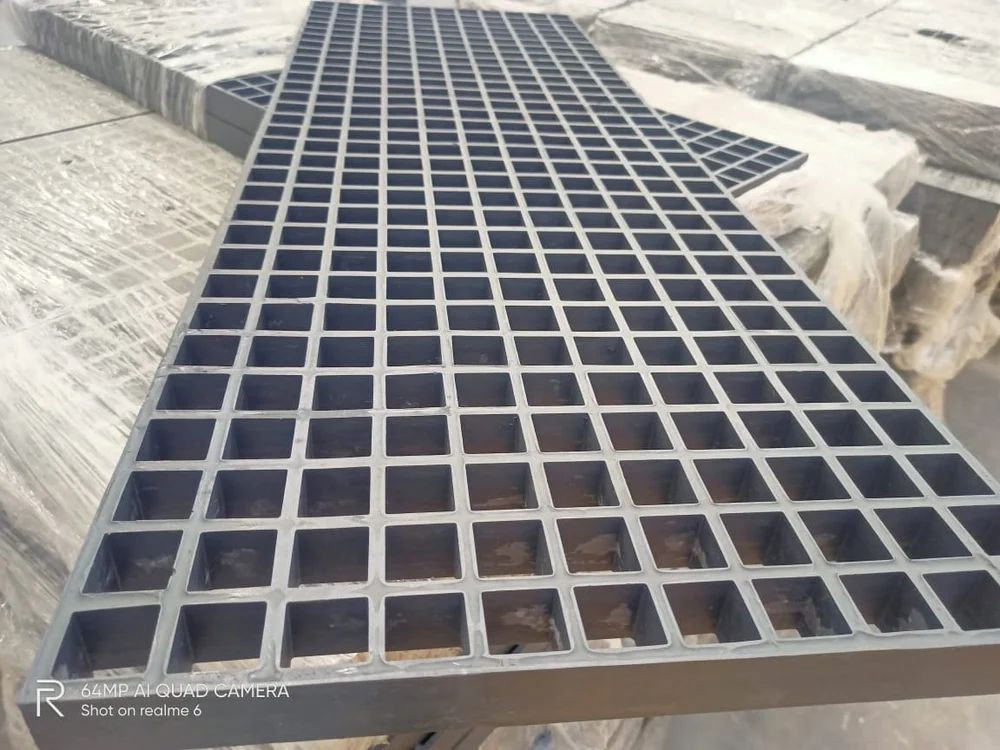

Concave Surface

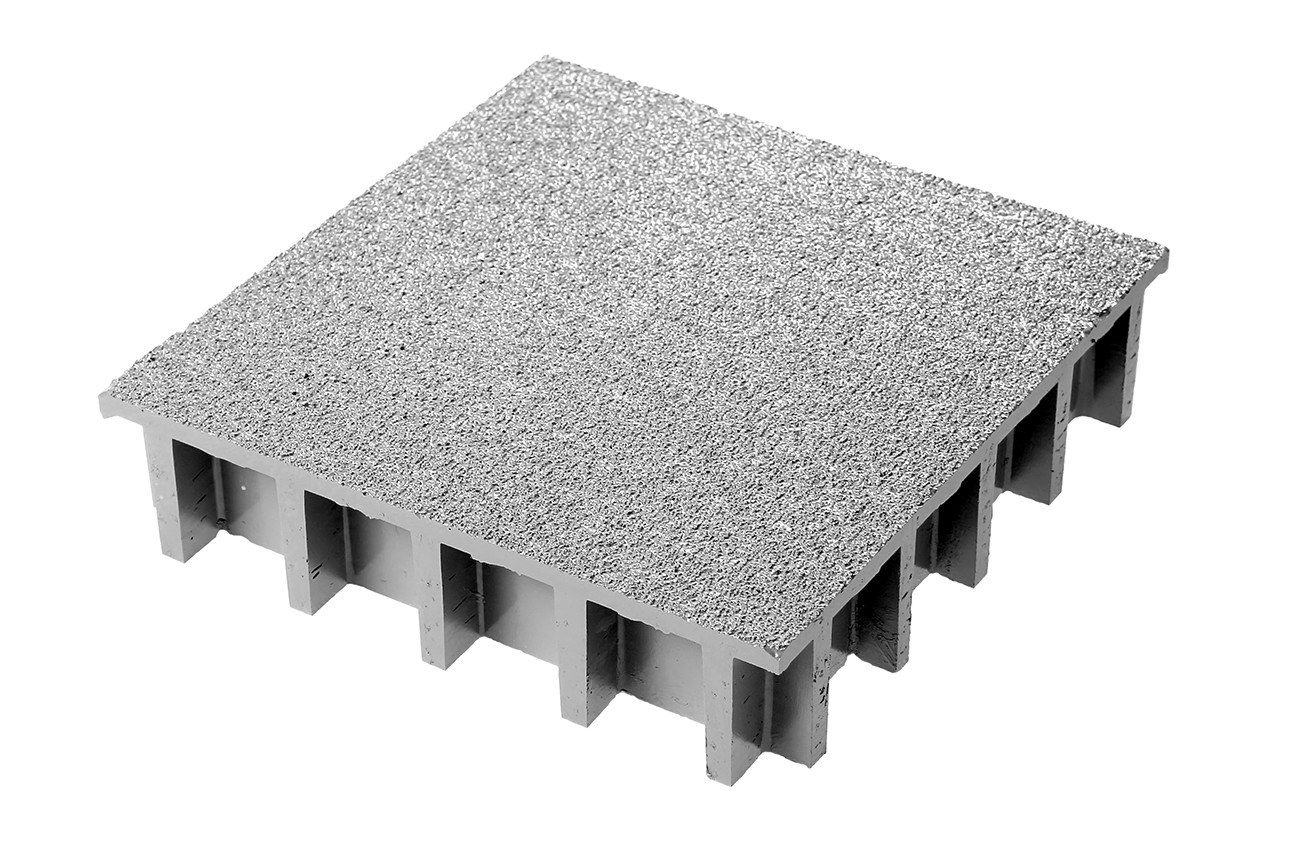

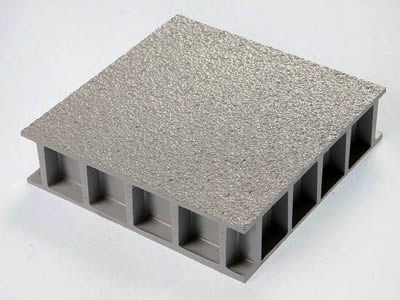

Gritted Top Surface Plate

Heights (mm)	Mesh Description & Size (mm)	Rib Thickness (mm)	Open Area %	Panel Size(mm)
25	Square (38 X38)	5-7	68%	1220X3660, 1000X4000, 1220X4000
30	Square (38 X38)	5-7	68%	1220X3660, 1000X4000, 1220X4000
38	Square (38 X38)	5-7	68%	1220X3660, 1000X4000, 1220X4000, 1500X4000
50	Square (38 X38)	5-7	71%	1220X3660, 1000X4000, 1220X4000, 1500X4000

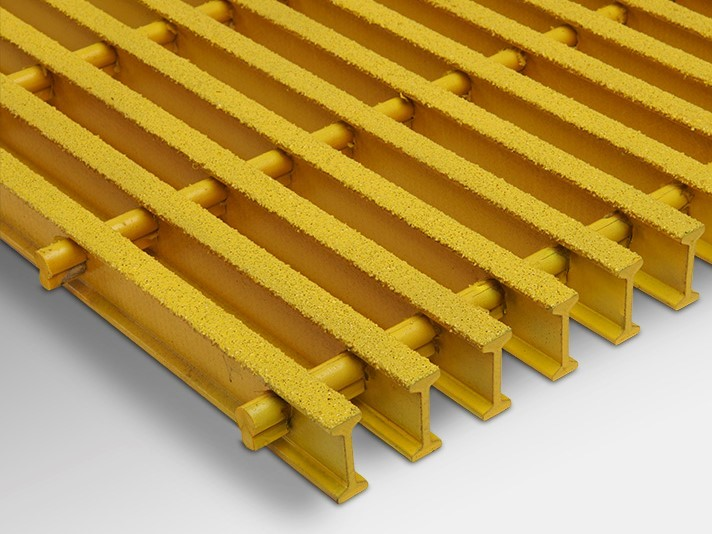

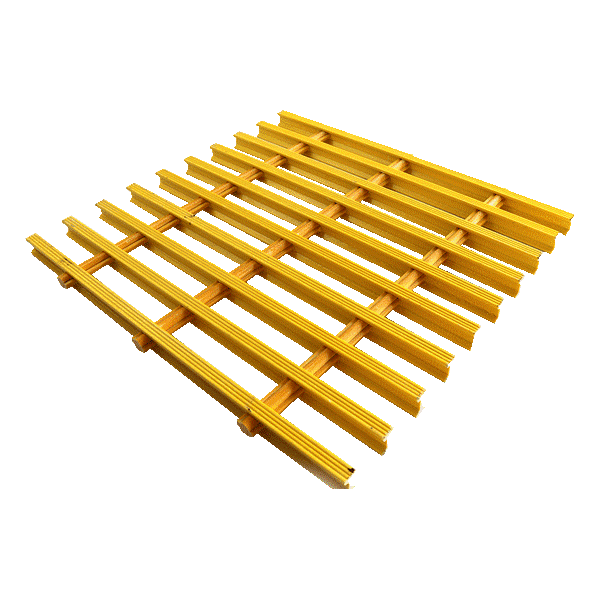

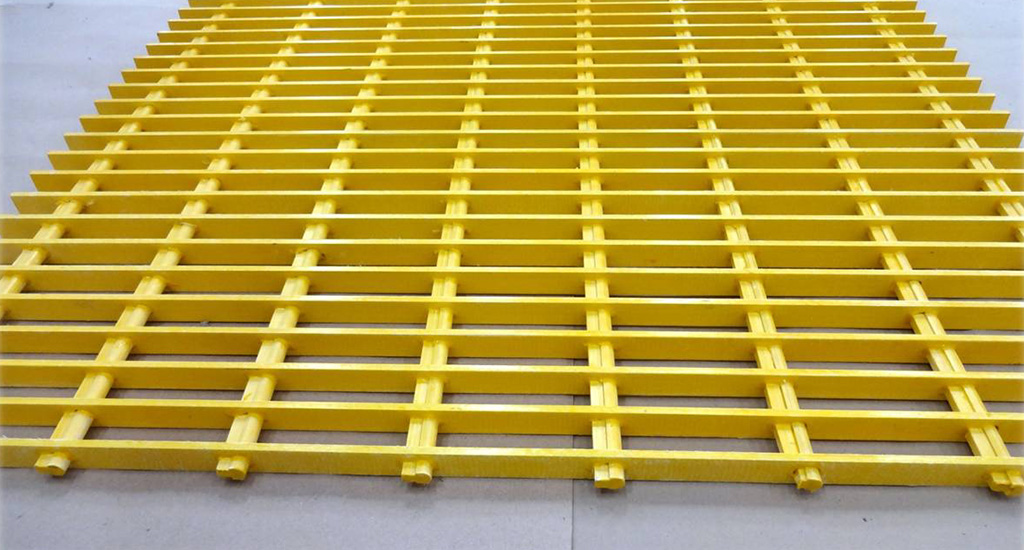

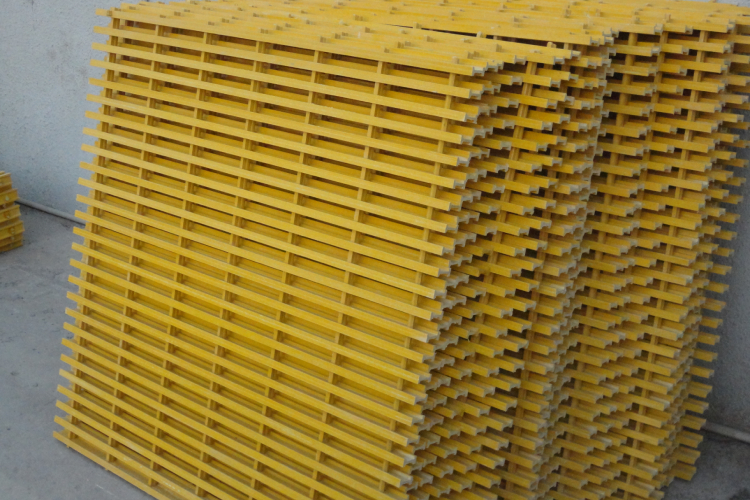

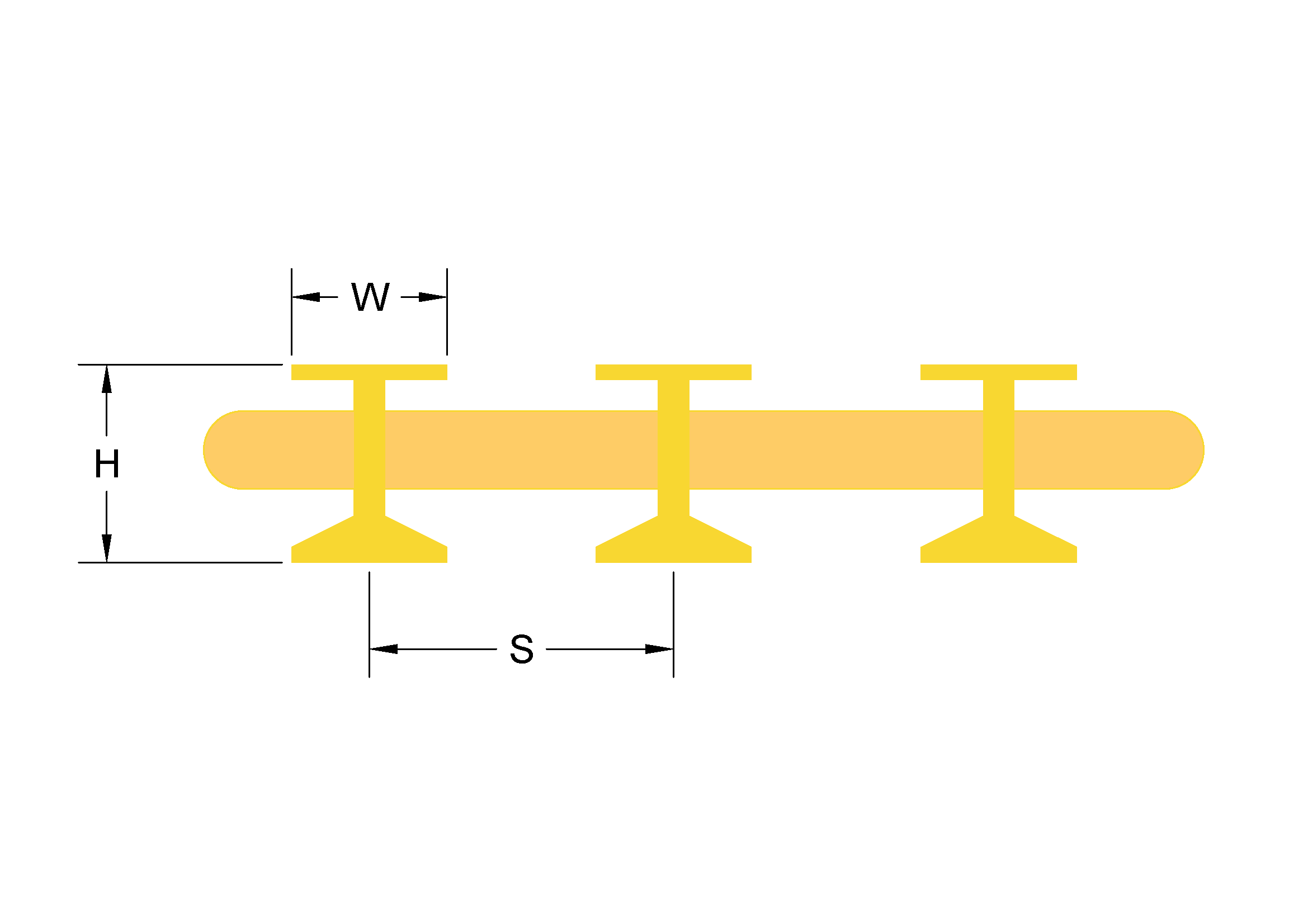

Pultruded FRP Gratings

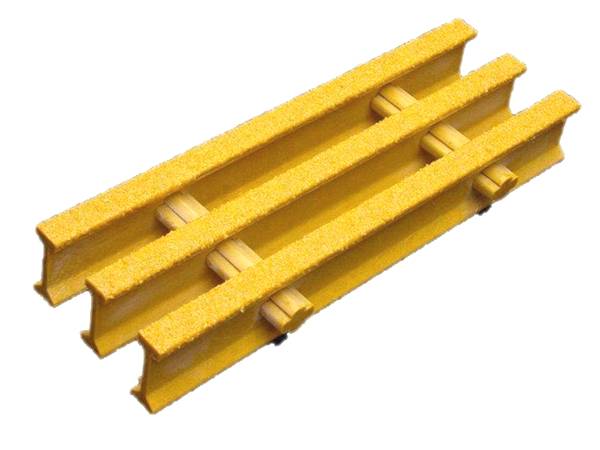

Kriza is a composite manufacturer that produces FRP (Fiber Reinforced Polymer) pultruded gratings in addition to their FRP moulded gratings. FRP pultruded gratings are made by pulling continuous fibres through a resin bath and then through a heated die to form a rigid, durable panel. Their Light Weight design, easy installation, good performance and cost effectiveness makes its better choice in major industries.
